THE LEVEL: PROGRESSIVE HORN POINT SOURCE
FULL RANGE progressive Horn High SPL Discreet
L35
L38
LEVEL L35 - NEW!
Available Models: L35 wall, L35 ceiling
Description
The Level L35 is a compact, full range loudspeaker designed for flush installation on a wall or ceiling. This 3-way loudspeaker delivers musical and refined sonic quality while having great volume capability for its size. The L35 is meant to be mounted flush on a wall (L35 wall) or ceiling (L35 ceiling), standing only 6 inches from the surface, utilizing its included hardware that is already recessed into the cabinet. The Level L35 has a progressive horn design making its directivity of sound very controlled with high capability to throw a farther distance. The L35 has extended low frequency making this a full range loudspeaker.
This discreet loudspeaker can be positioned on a wall in bars, restaurants, or retail environments allowing for a sleek aesthetic and a full range system that can emit high SPL. The L35, like all 1 SOUND loudspeakers, is available in various colors and finishes with a short turnaround time and is IP55 and saltwater resistant.
Available Models: L35 wall, L35 ceiling
SPECIFICATIONS
Description: Passive, 3-way, flush-mounted point source enclosure with a progressive horn design
Bandwidth: 65 Hz - 18 kHz (-6 dB preset dependent)
Max SPL: 122 dB
Power: 640 W (program), 320 W (AES)
Directivity: 60° vertical (+25°/-35° with respect to the baffle), 50° to 90° horizontal (progressive)
Elements : (2) 5” low frequency drivers, (1) 5” coaxial driver, (3) 5” passive radiators
Impedance: 16Ω
Connectors: (2) NL4
IP Rating: IP55 indoor/outdoor and salt water resistant
Rigging: (2) M8 points, (2) M6 points (only for included bracket)
Weight: 19.8 lbs / 9 kg
Construction: Finland birch plywood (phenolic resin), three coats of polyurea, matte salt and UV resistant coating, A4 316 stainless steel hardware, 3D spacer mesh fabric
Accessories: Recessed Mounting Bracket [included],
Dimensions: 19.68” (500 mm) x 12” (306 mm) x 5.9” (150 mm)
Colors: Stocking black and white, custom colors and fabrics available
downloads
L35 WALL SPECIFICATION & DATA SHEET
L35 CEILING SPECIFICATION & DATA SHEET
L35 WALL EASE PROFILE
L35 CEILING EASE PROFILE
L35 PDF DRAWING
L35 2D DWG DRAWING
L35 3D DWG
LEVEL L35 REVIT (Freestanding/Flush-mounted) [with materials]
LEVEL L35 REVIT (Freestanding/Flush-mounted) [w/o materials]
(2) 8” LOW FREQUENCY DRIVERS
(1) 8" COAXIAL DRIVER WITH 3” & 2” VOICe COILS WITH A PROGRESSIVE HORN ELEMENT
ACCESSORIES: Recessed Mounting Bracket [included], M8 Hanging Kit
LEVEL L38
Available Models: L38 wall, L38 ceiling
Description
The Level L38 is a new take on a full range loudspeaker with a low-profile design, offering various application possibilities. The L38 is meant to be mounted flush on a wall (L38w) or ceiling (L38c), standing only 8 inches from the surface, utilizing hardware that is already built into the cabinet. This sleek-looking loudspeaker is comprised of three 8-inch drivers, one of which is a coaxial with a proprietary progressive horn design that is rotatable, capable of a max SPL of 130 dB. This loudspeaker has an impactful sound with outstanding clarity and sonic intelligibility especially at a higher SPL range. The L38 was designed to have passive cardioid behavior, which means the mid-low frequencies will reduce a linear 8 dB off-axis of the speaker. This single-channel loudspeaker has a bandwidth down to 65 Hz, making it ideal as a stand-alone loudspeaker.
The progressive horn design and internal angle allow this loudspeaker to be mounted optimally 8 to 15 feet high on a wall. If mounted on a wall, the dispersion covers almost 90 degrees below the loudspeaker. This is significant because the listener can be almost directly under the loudspeaker on the wall and is in the listening field, while the cardioid behavior lessens the reflection of low-mid frequencies onto the ceiling. This discreet loudspeaker can be positioned on a wall in high-energy bars, restaurants, or retail environments allowing for a sleek aesthetic and a full range system that can emit high SPL. The L38, like all 1 SOUND loudspeakers, is available in various colors and finishes with a short turnaround time and is IP55 and saltwater resistant.
Available Models: L38 wall, L38 ceiling
SPECIFICATIONS
Description: Passive, 3-way, high-powered progressive horn loudspeaker with cardioid behavior
Bandwidth: 65 Hz - 18 kHz (-6 dB)
Max SPL: 130 dB @ 1m with preset
Power: 2400 W (program), 1200 W (AES)
Directivity: 80° vertical (-30°/+50° with respect to the baffle), 80° to 40° horizontal (progressive)
Elements: (2) 8" low frequency drivers, (1) 8" coaxial driver with 3” plus 2” voice coils
Impedance: 8Ω
Connectors: (2) NL4
IP Rating: IP55 indoor/outdoor and salt water resistant
Rigging: (2) M6 points (only for included bracket), (4) M8 points
Weight: 40 lbs / 18.2 kg
Construction: Finland birch plywood (phenolic resin), three coats of polyurea, matte salt and UV resistant coating, A4 (316) stainless steel hardware, 3D spacer mesh fabric
Accessories: Recessed Mounting Bracket [included]
Dimensions: 27.6" (700 mm) x 16.1" (408 mm) x 8" (204 mm)
Colors: Stocking black and white, custom colors and fabrics available
downloads
L38 WALL SPECIFICATION & DATA SHEET
L38 CEILING SPECIFICATION & DATA SHEET
L38 WALL EASE PROFILE
L38 CEILING EASE PROFILE
L38 PDF DRAWING
L38 2D DWG DRAWING
L38 3D DWG
LEVEL L38 REVIT (Freestanding/Flush-mounted) [with materials]
LEVEL L38 REVIT (Freestanding/Flush-mounted) [w/o materials]
(2) 8” LOW FREQUENCY DRIVERS
(1) 8" COAXIAL DRIVER WITH 3” & 2” VOICe COILS WITH A PROGRESSIVE HORN ELEMENT
ACCESSORIES: Recessed Mounting Bracket [included], M8 Hanging Kit
Lou Mannarino introduces the Level L38
Level L38 wall: MF & HF showing the effect of the progressive horn
Level L38 wall: (-30°/+50° with respect to the baffle)

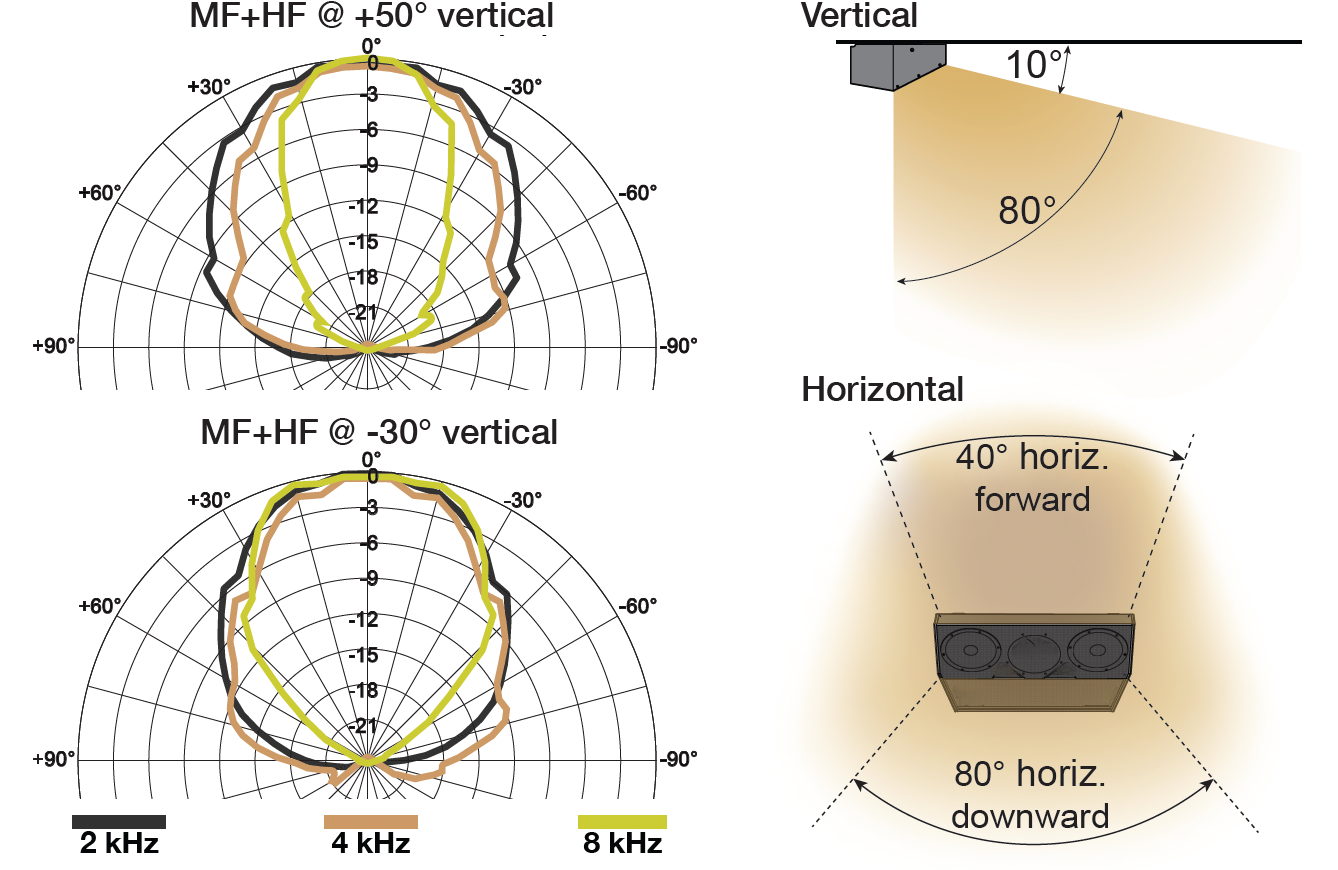

Level L38 ceiling: MF & HF showing the effect of the progressive horn
Level L38 ceiling: (-30°/+50°) with respect to the baffle)
