SUBWOOFERS
MiniSUB5 5” low frequency driver
FSUB45 [floor] (4) 5” with a 10” passive radiator
WSUB45 (4) 5” with a 10” passive radiator
WSUB45i [flush wall mount] (4) 5” with a 10” passive radiator
SUB10 600W low profile single 10”
SUB12 1200W low profile single 12”
CSUB210 steerable double 10”
SUB310 triple 10” line source
CSUB610 steerable (6) 10” - (omni & cardioid modes)
SUB215 (2) 15” low frequency drivers
SUB2112 bi-amped (1) 21” & (2) 12” drivers
MiniSUB5 mini subwoofer
The MiniSUB5 is the ideal discreet subwoofer that offers substantial bass and a unique form factor.
This subwoofer is a 20” square and only 4.75” deep.
This sleek, no branding design with a french cleat makes this subwoofer perfect for hanging on a wall or floor placement.
Specifications
Description: passive, discreet subwoofer that offers substantial bass and a unique form factor with no visible branding
Bandwidth: 36 Hz - 160 Hz (-6 dB preset dependent)
Max SPL: 108 dB SPL @ 1m with preset
Power: 240 watts (program), 120 watts (AES)
Directivity: Omnidirectional
Elements: (1) 5” low frequency driver
Impedance: 8Ω
Connectors: (1) screw terminal block with input +/- and loop +/-
IP Rating: IP55 indoor/outdoor and salt water resistant, the connector is not sealed therefore can not be exposed to water
Rigging: (4) M6 points, integrated French cleat
Weight: 17.7 lbs / 8 kg
Construction: Finland birch plywood (phenolic resin), three coats of polyurea, matte salt and UV resistant coating, A4 (316) stainless steel and aluminum hardware
Accessories: French cleat for wall hanging [included], low profile feet for floor support [included]
Dimensions: 4.7” (120 mm) x 20” (508 mm) x 20” (508 mm)
Colors: Stocking black and white, custom colors available
Subwoofers
In-Use Photo Gallery

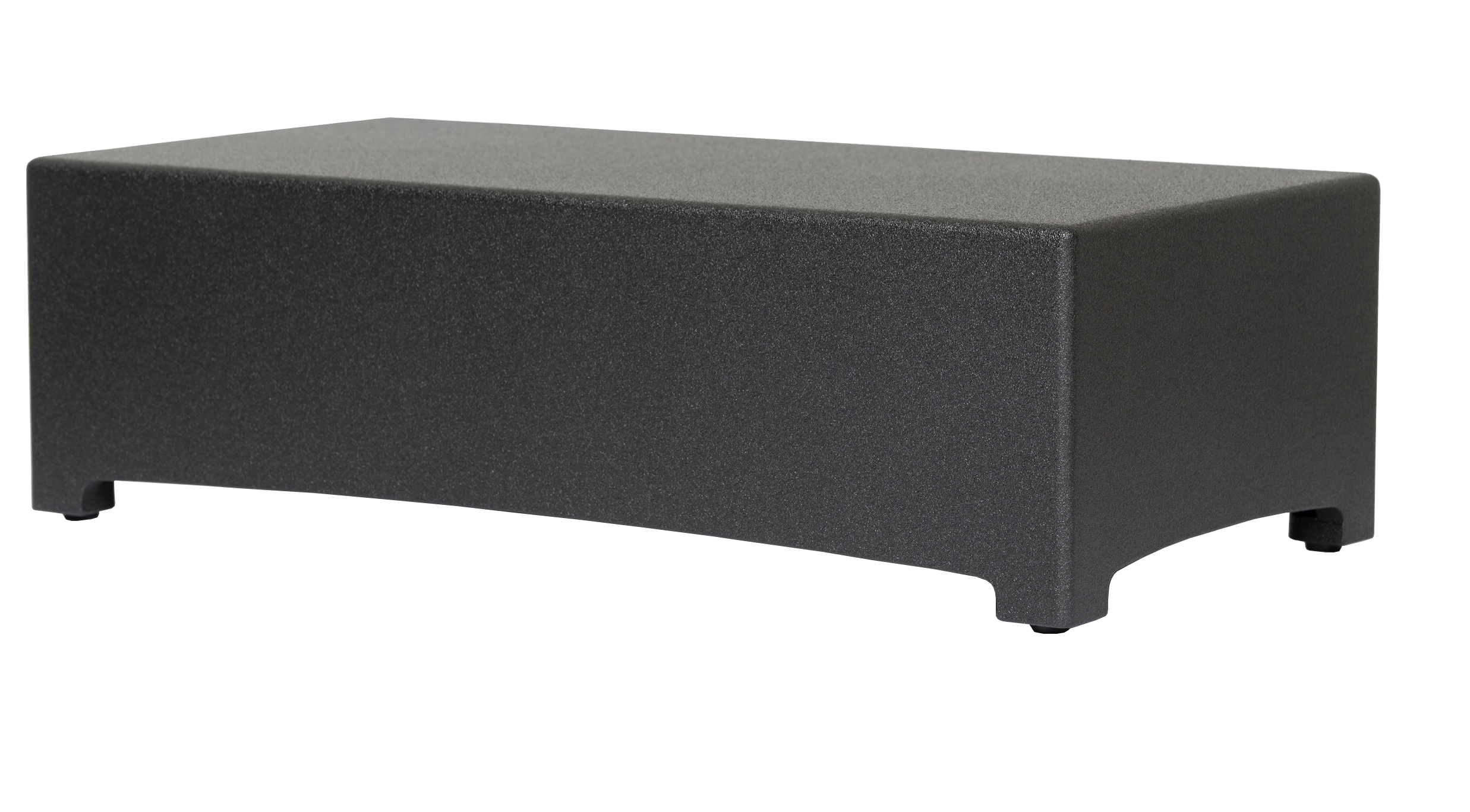

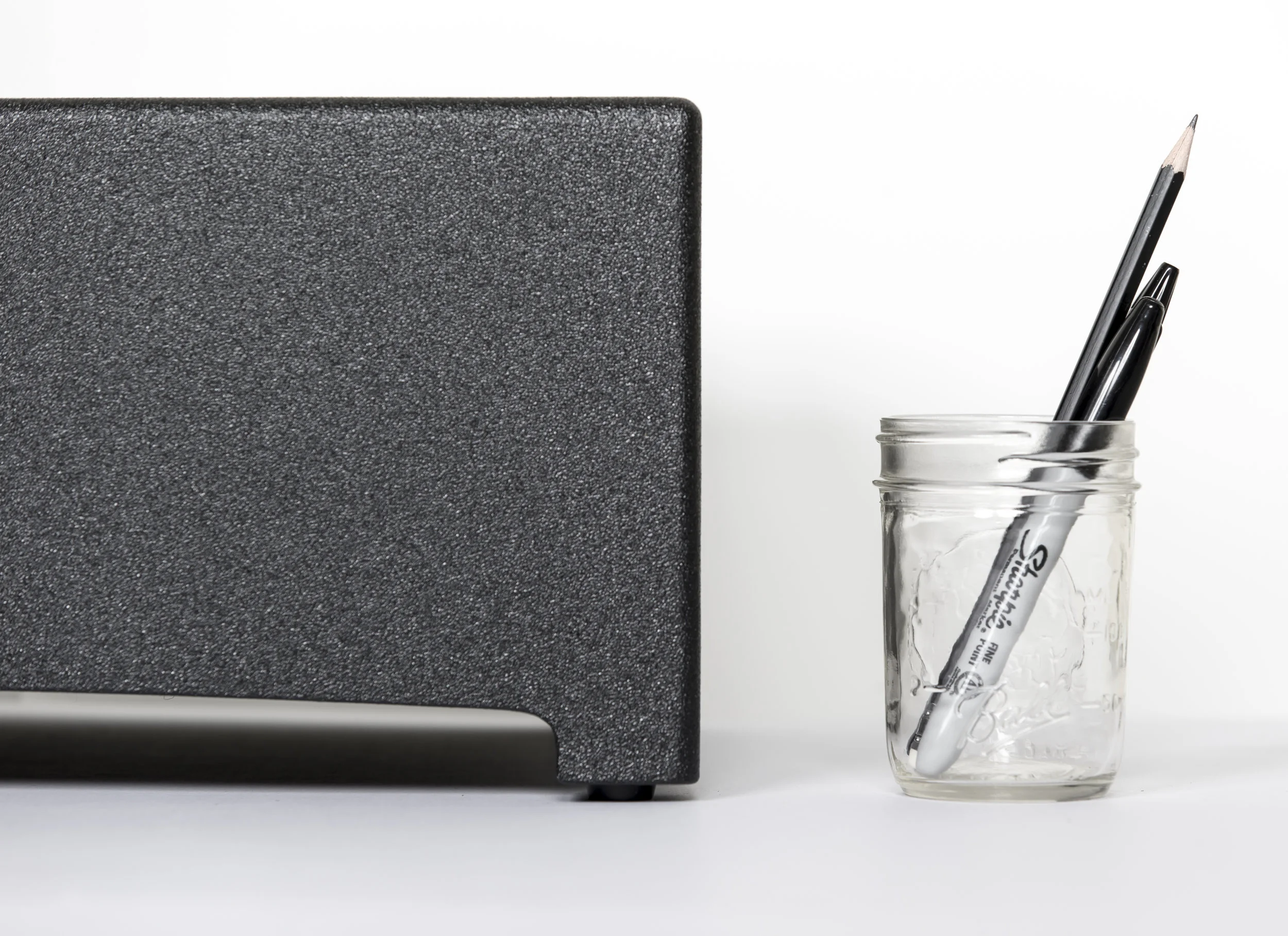

FSUB45 floor subwoofer
Ultra compact and powerful lightweight floor subwoofer
Its unique design with a clean look enables more available positioning
SPECIFICATIONS
Description: Passive, lightweight, fast responding and compact subwoofer designed for those hard to reach places
Bandwidth: 39 Hz - 140 Hz (-6 dB preset dependent)
Max SPL: 123 dB SPL @ 1m with preset
Power: 900 watts (program), 450 watts (AES)
Directivity: Omnidirectional
Elements: (4) 5” low frequency drivers, (1) 10” passive radiator
Impedance: 8Ω
Connectors: (1) NL4
IP Rating: IP55 indoor/outdoor and salt water resistant
Rigging: Floor supported- no rigging, no holes, no branding
Weight: 30.8 lbs / 14 kg
Construction: Finland birch plywood (phenolic resin), three coats of polyurea, matte salt and UV resistant coating, A4 (316) stainless steel hardware, 3D spacer mesh fabric
Accessories: A floor to place it
Dimensions: 11.7” (298 mm) x 7.4” (188 mm) x 23.5” (596 mm)
Colors: Stocking black and white, custom colors available
Subwoofers
In-Use Photo Gallery
Product Video FSUB45

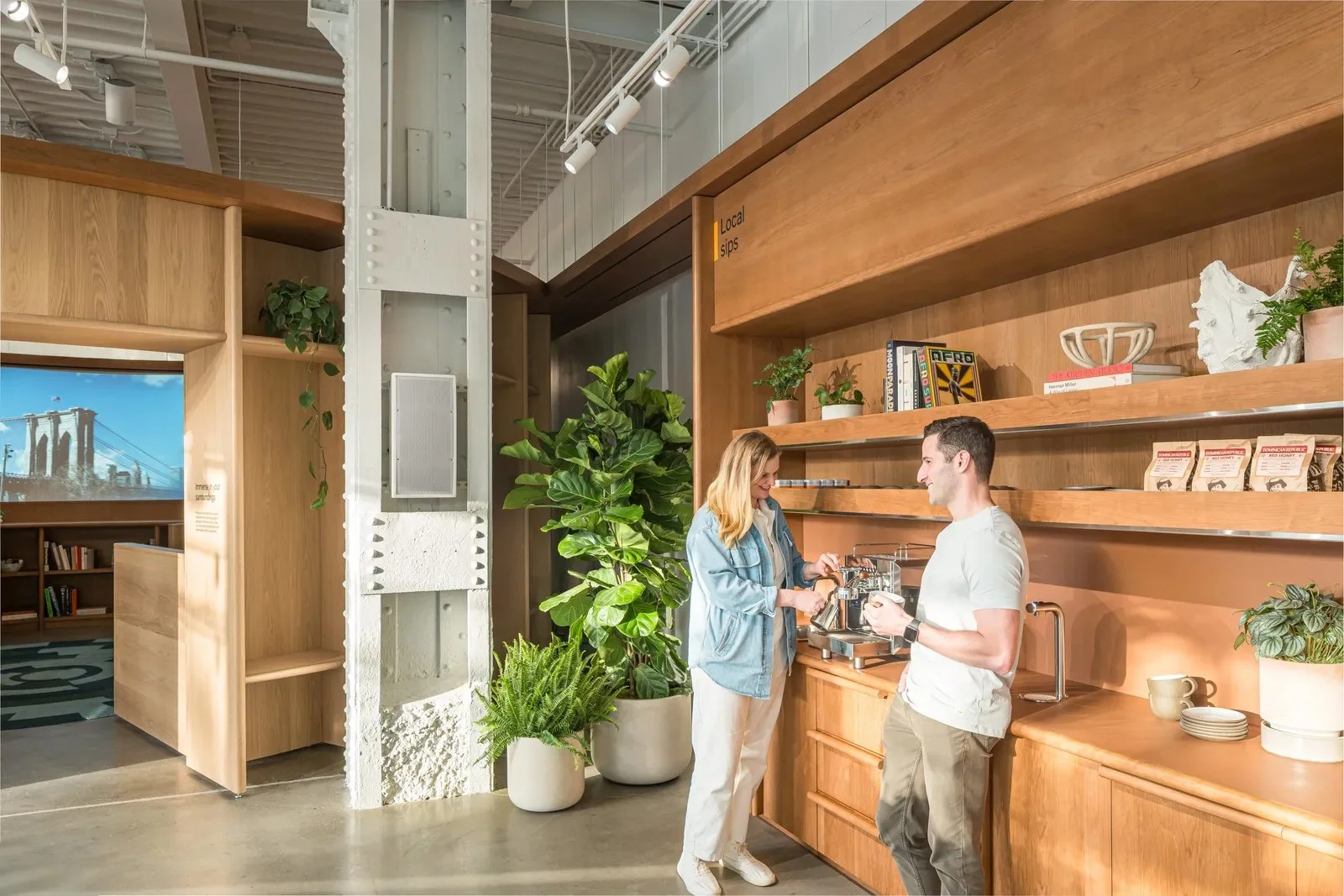

WSUB45 wall subwoofer
An Ultra compact, outdoor rated, slim and powerful lightweight subwoofer
Its unique design fits against or inside a wall, Suspended from a ceiling or recessed in a ceiling tile
SPECIFICATIONS
Description: Passive, lightweight, fast responding and compact
Bandwidth: 39 Hz - 140 Hz (-6 dB preset dependent)
Max SPL: 123 dB SPL @ 1m with preset
Power: 900 watts (program), 450 watts (AES)
Directivity: Omnidirectional
Elements: (4) 5” low frequency drivers, (1) 10” passive radiator
Impedance: 8Ω
Connectors: (1) NL4
IP Rating: IP55 indoor/outdoor and salt water resistant
Rigging: (12) M6 points
Weight: 25.1 lbs / 11.4 kg
Construction: Finland birch plywood (phenolic resin), three coats of polyurea, matte salt and UV resistant coating, A4 (316) stainless steel hardware, 3D spacer mesh fabric
Accessories: C-Clamps & Bridge Kit for wall and ceiling suspension, M6 Hanging Kit, Ceiling Tile Grille
Dimensions: 11.7” (298 mm) x 6.6” (167 mm) x 23.5” (596 mm)
Colors: Stocking black and white, custom colors and fabrics available
Subwoofers
In-Use Photo Gallery

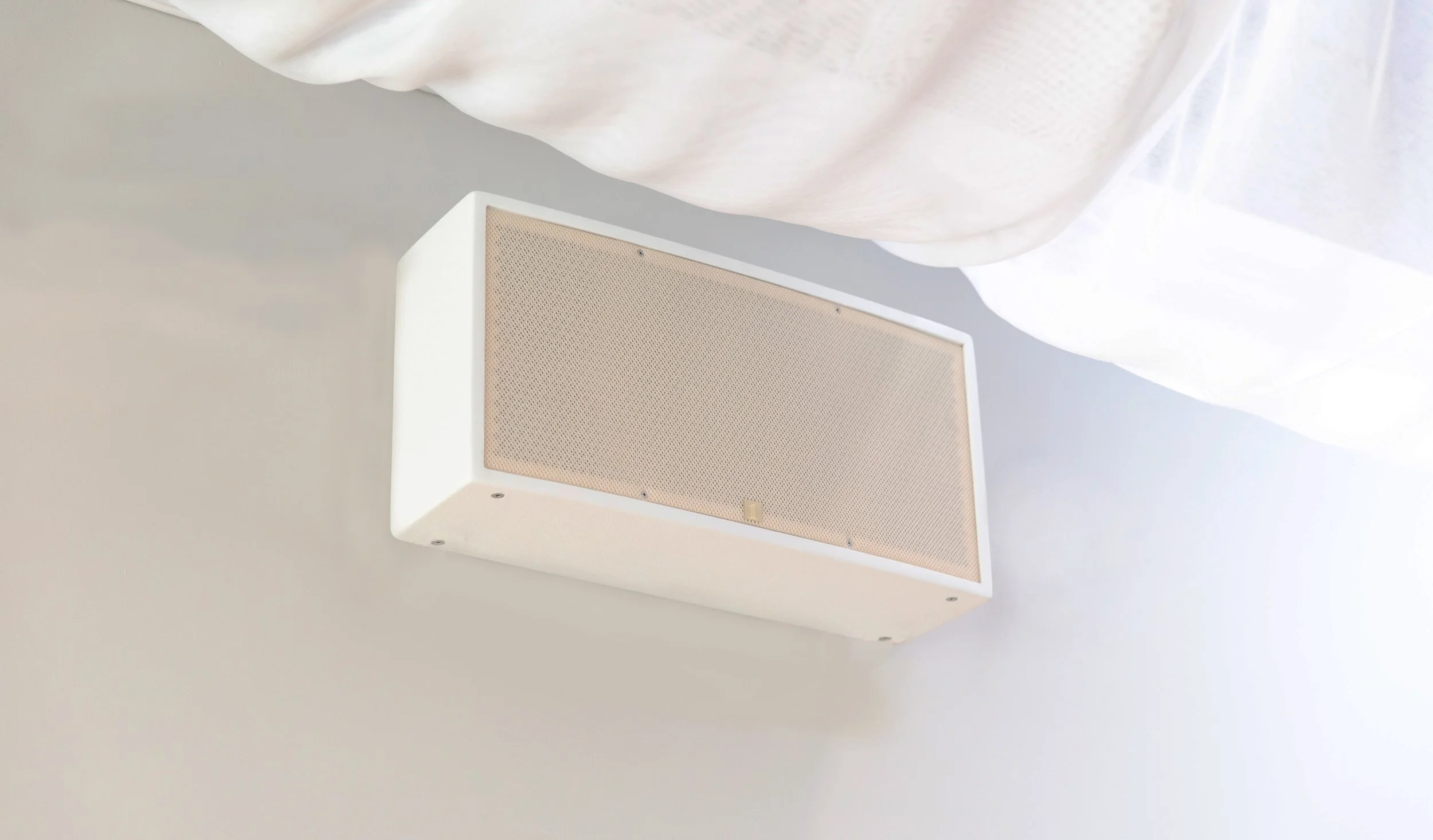

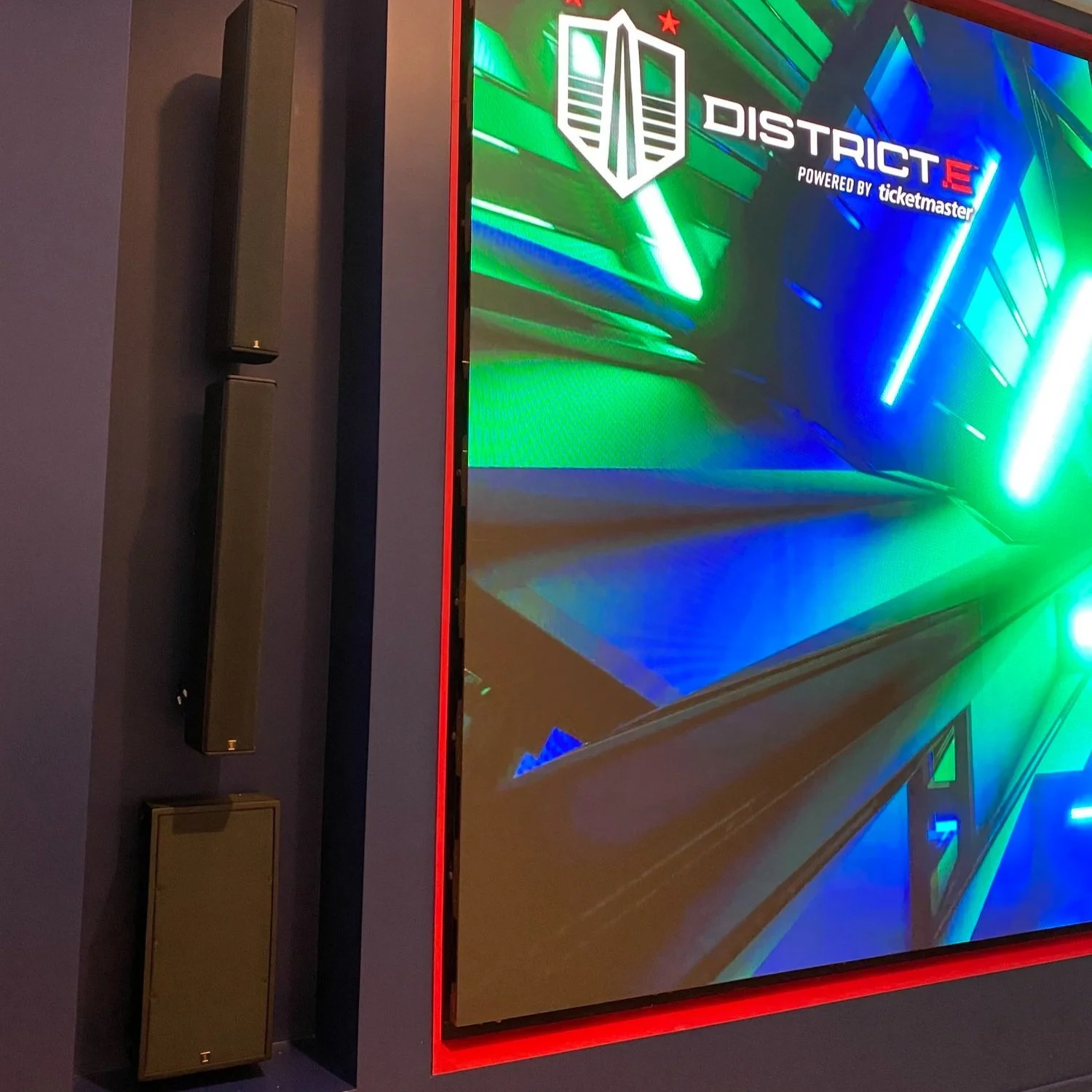

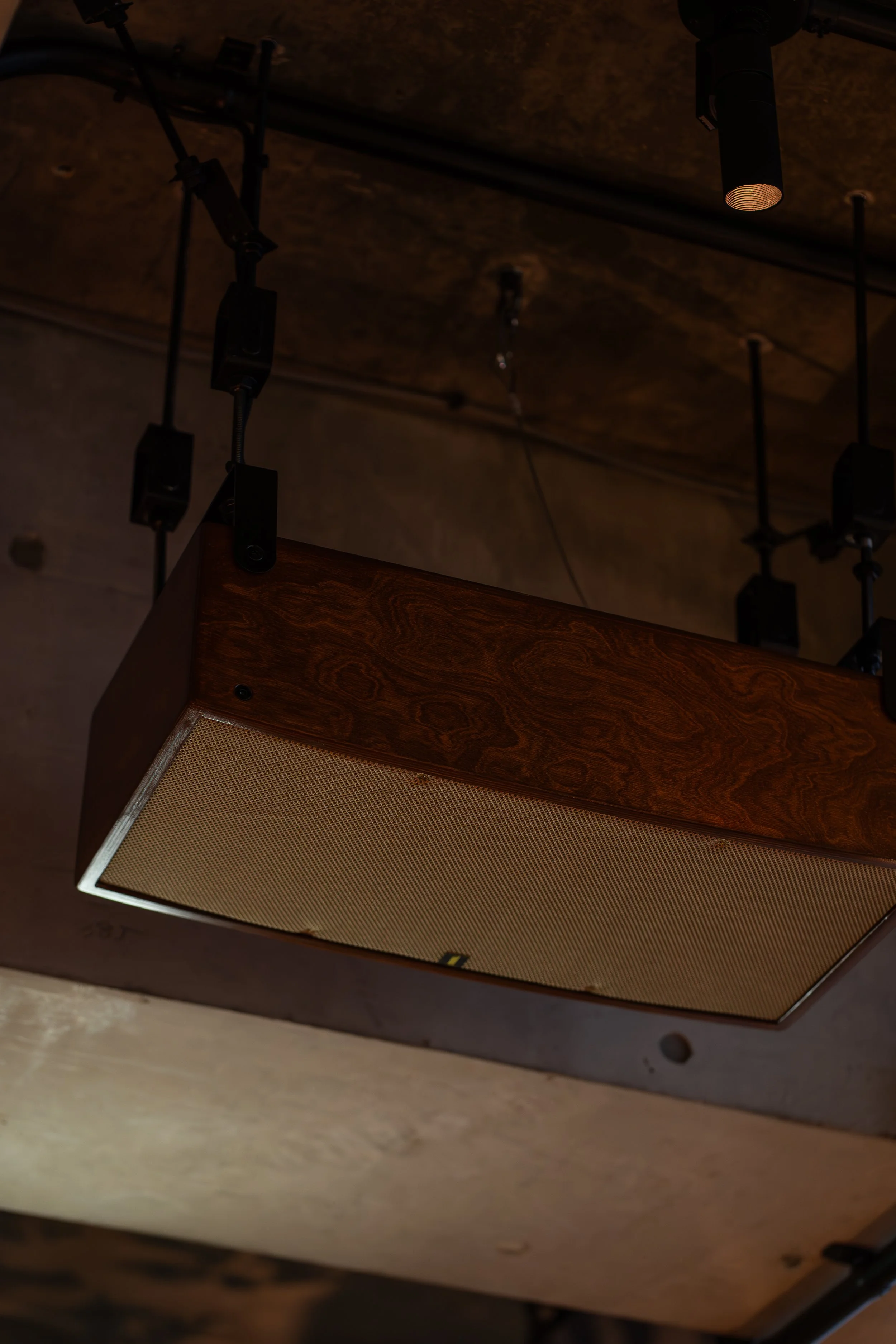

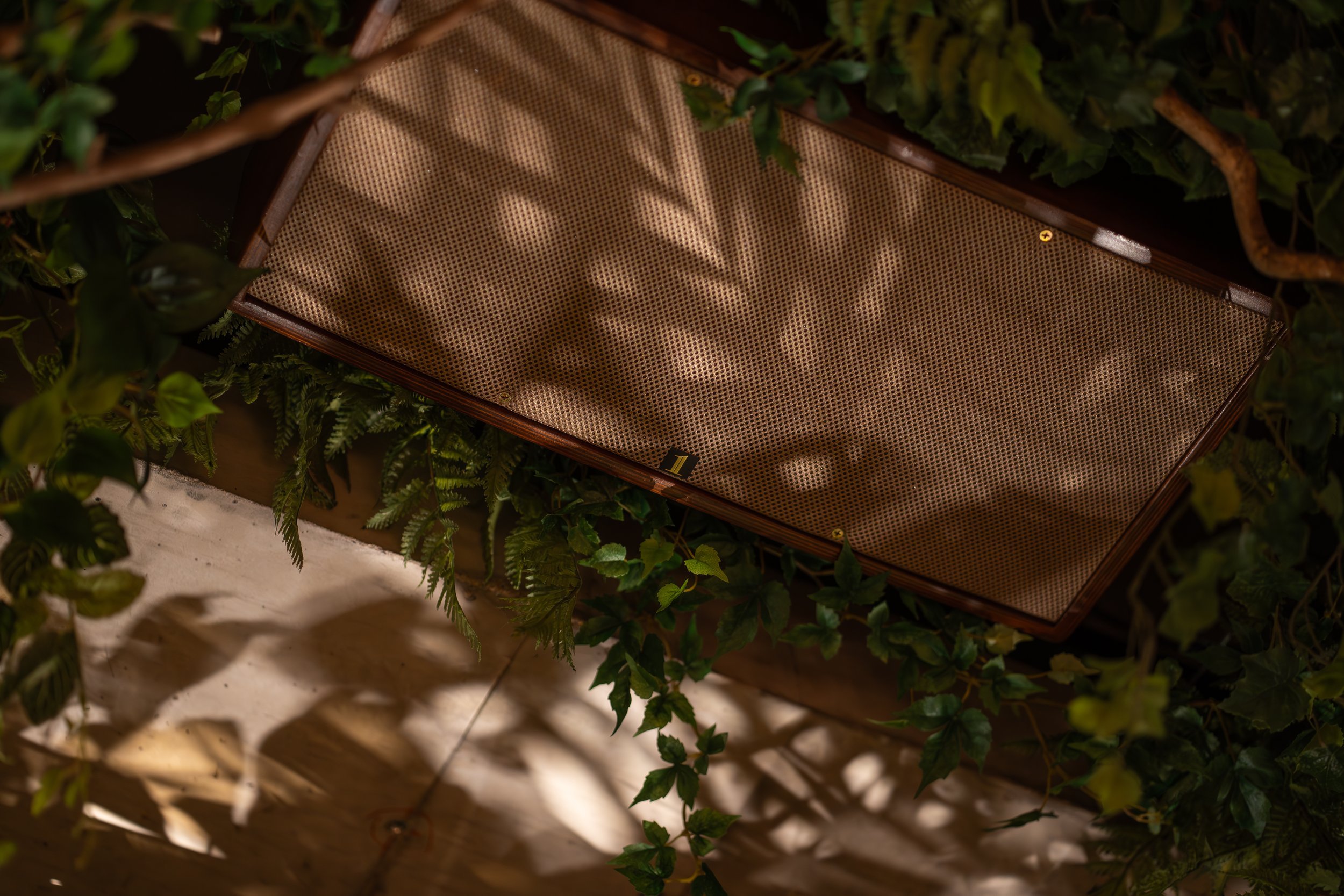

WSUB45i wall subwoofer
The WSUB45i has two French cleats built into the rear of the cabinet, for flush wall mounting (vertically or horizontally)
This sub is only 6.6” off of the wall
SPECIFICATIONS
Description: Passive, lightweight, fast responding and compact
Bandwidth: 39 Hz - 140 Hz (-6 dB preset dependent)
Max SPL: 123 dB SPL @ 1m with preset
Power: 900 watts (program), 450 watts (AES)
Directivity: Omnidirectional
Elements: (4) 5” low frequency drivers, (1) 10” passive radiator
Impedance: 8Ω
Connectors: (1) screw terminal block with input +/- and loop +/-
IP Rating: IP55 indoor/outdoor and salt water resistant, the connector is not sealed therefore can not be exposed to water
Rigging: (12) M6 points, integrated French cleats
Weight: 25.1 lbs / 11.4 kg
Construction: Finland birch plywood (phenolic resin), three coats of polyurea, matte salt and UV resistant coating, A4 (316) stainless steel hardware, 3D spacer mesh fabric
Accessories: French cleat for horizontal and vertical hanging [included], recessed rubber feet [included], C-Clamp & Bridge Kit, M6 Hanging Kit, Ceiling Tile Grille
Dimensions: 11.7” (298 mm) x 6.6” (167 mm) x 23.5” (596 mm)
Colors: Stocking black and white, custom colors and fabrics available
Subwoofers
In-Use Photo Gallery
SUB10 600w
HIGH POWERED, PASSIVE SUBWOOFER WITH A SINGLE 10” DRIVER
A COMPACT REFLEX DESIGN
2.5” VOICE COIL, 35HZ RECESSED NL4’S FOR FLUSH WALL PLACEMENT
SPECIFICATIONS
Description: Compact, passive, reflex bass unit
Bandwidth: 35 Hz - 125 Hz (-6 dB preset dependent)
Max SPL: 123 dB SPL @ 1m with preset
Power: 600 watts (program)
Directivity: Omnidirectional
Elements : (1) 10" low frequency driver with a 2.5” voice coil
Impedance: 8Ω
Connectors: (2) recessed NL4
IP Rating: IP55 indoor/outdoor and salt water resistant
Rigging: (4) M8 points
Weight: 36.2 lbs / 16.4 kg
Construction: Finland birch plywood (phenolic resin), three coats of polyurea, matte salt and UV resistant coating, A4 (316) stainless steel hardware, 3D spacer mesh fabric
Accessories: Sub Pole Cup for an M20 screw-in pole or Active Speaker Tubes, M8 Hanging Kit, removable rubber feet [included]
Dimensions: 13.8” (350 mm) x 12.6” (320 mm) x 18.9” (480 mm)
Colors: Stocking black and white, custom colors and fabrics available
DOWNLOADS
SUB10 SPECIFICATION & DATA SHEET
SUB10 EASE PROFILE
SUB10 EASE FOCUS 3
SUB10 PDF DRAWING
SUB10 3D DWG DRAWING
SUB10 3D DWG (with feet)
SUB10 3D DWG (w/o feet)
SUB10 REVIT [with materials]
SUB10 REVIT [w/o materials]

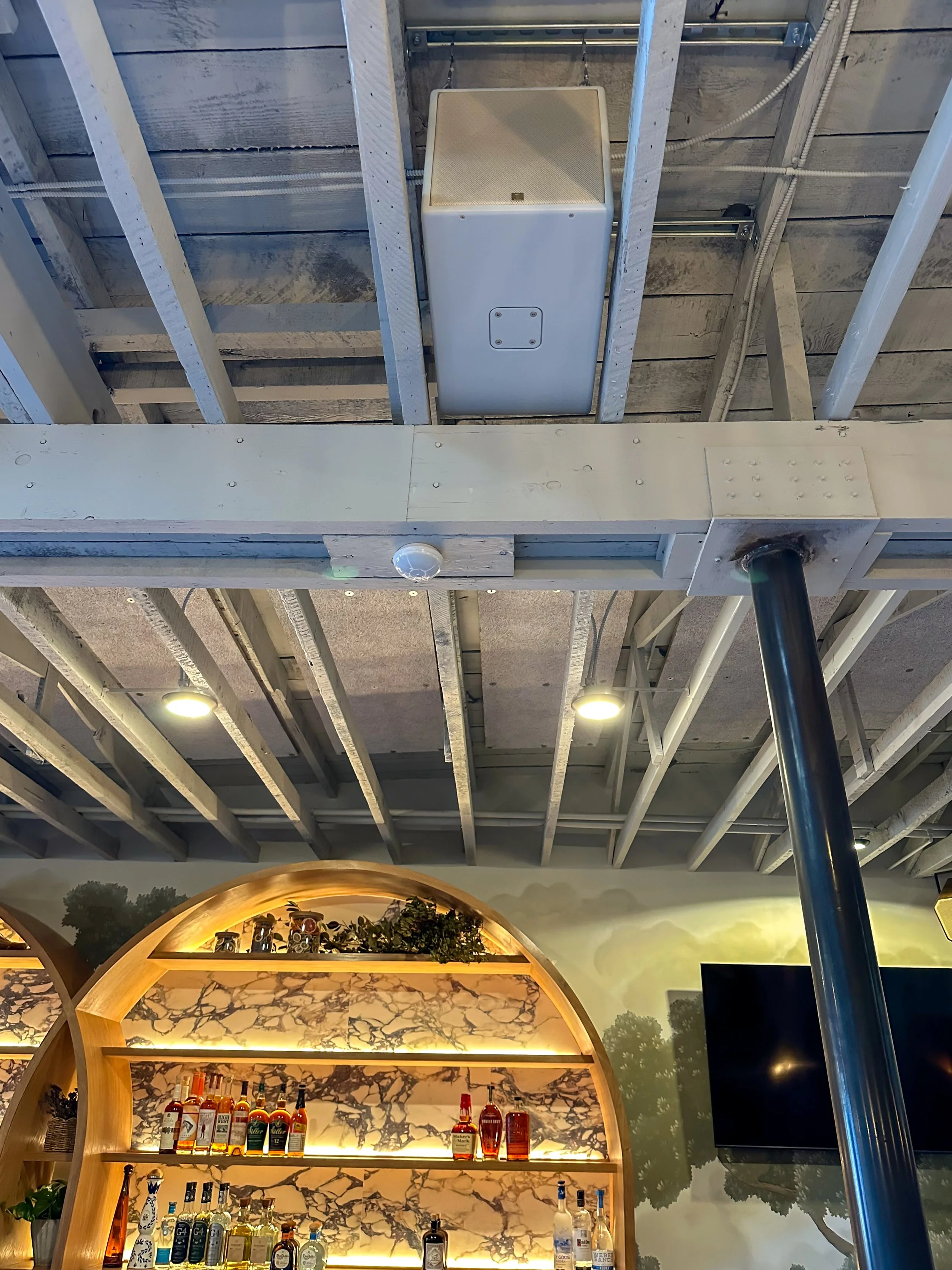

SUB12 1200w
Passive, high powered, 12” compact, reflex designed subwoofer with a 4” voice coil
recessed nl4’s for flush wall placement
SPECIFICATIONS
Description: Compact, passive, reflex bass unit
Bandwidth: 35 Hz - 150 Hz (-6 dB preset dependent)
Max SPL: 132 dB SPL @ 1m with preset
Power: 1200 watts (program)
Directivity: Omnidirectional
Elements : (1) 12" neodymium low frequency driver with a 4” voice coil
Impedance: 8Ω
Connectors: (2) recessed NL4
IP Rating: IP55 indoor/outdoor and salt water resistant
Rigging: (4) M8 points
Weight: 46.3 lb / 21 kg
Construction: Finland birch plywood (phenolic resin), three coats of polyurea, matte salt and UV resistant coating, A4 (316) stainless steel hardware, 3D spacer mesh fabric
Accessories: Sub Pole Cup for an M20 screw-in pole or Active Speaker Tubes, M8 Hanging Kit, removable rubber feet [included]
Colors: Stocking black and white, custom colors and fabrics available
Dimensions: 15.8” (400 mm) x 14.2” (360 mm) x 20.5” (525 mm)
Colors: Stocking black and white, custom colors and fabrics available
DOWNLOADS
SUB12 SPECIFICATION & DATA SHEET
SUB12 EASE PROFILE
SUB12 EASE FOCUS 3
SUB12 PDF DRAWING
SUB12 2D DWG DRAWING
SUB12 3D DWG (with feet)
SUB12 3D DWG (w/o feet)
SUB12 REVIT [with materials]
SUB12 REVIT [w/o materials]

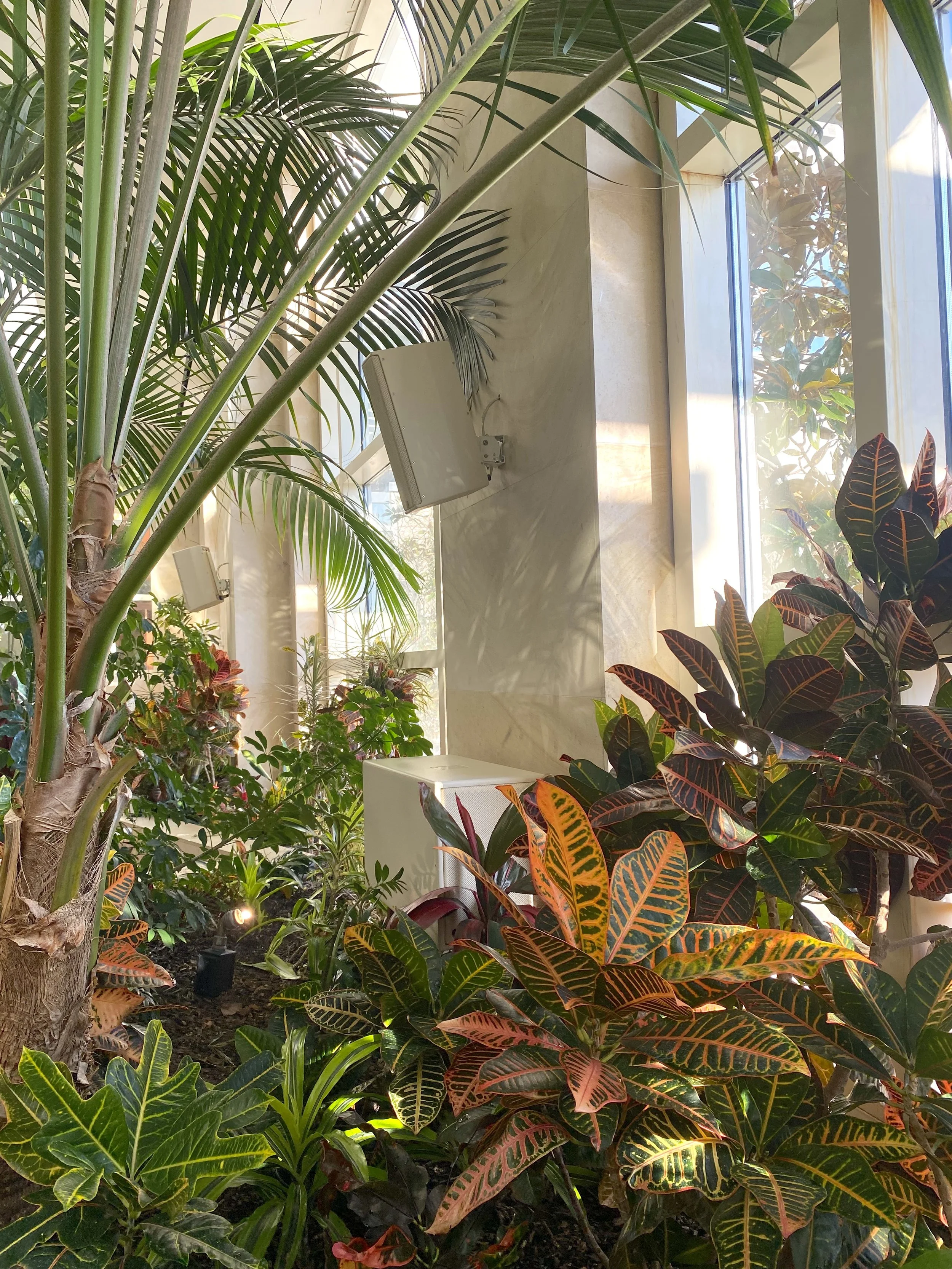

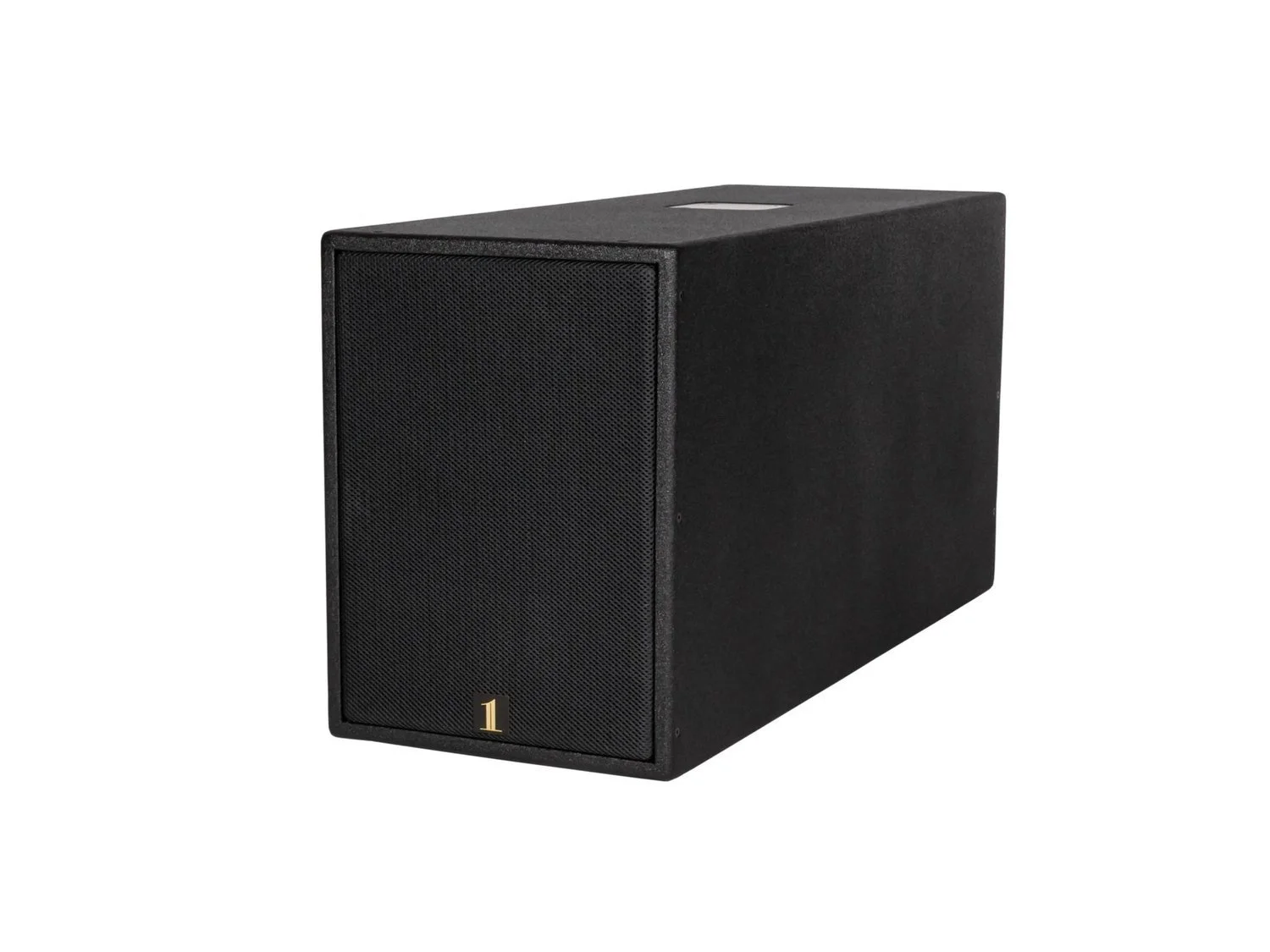

CSUB210 steerable
A double 10” Multidirectional Subwoofer
that offers cardioid, sub cardioid (end fire) and omnidirectional modes
Parallel or perpendicular wall placements
frequency response to 35hz
SPECIFICATIONS
Description: Passive multidirectional subwoofer (DSP dependent) with positioning options
Bandwidth: 35 Hz - 120 Hz (-6 dB preset dependent)
Max SPL: 128 dB SPL @ 1m with omni preset
Power: 600+600 watts (program), 300+300 watts (AES)
Directivity: Omnidirectional, sub cardioid (end fire) and cardioid with DSP presets
Elements: (2) 10" low frequency drivers
Impedance: 8Ω + 8Ω, 4 wire operation
Connectors: (2) NL4
IP Rating: IP55 indoor/outdoor and salt water resistant
Rigging: (8) M10 points
Weight: 65.4 lb / 29.7 kg
Construction: Finland birch plywood (phenolic resin), three coats of polyurea, matte salt and UV resistant coating, A4 (316) stainless steel hardware, 3D spacer mesh fabric
Accessories: Sub Pole Cup, Active Speaker Tubes, removable rubber feet [included]
Dimensions: 12” (307 mm) x 16.5” (418 mm) x 31.5” (800 mm)
Colors: Stocking black and white, custom colors and fabrics available
DOWNLOADS
CSUB210 SPECIFICATION & DATA SHEET
CSUB210 EASE PROFILE
CSUB210 EASE FOCUS 3
CSUB210 PDF DRAWING
CSUB210 2D DWG DRAWING
CSUB210 3D DWG (with feet)
CSUB210 3D DWG (w/o feet)
CSUB210 REVIT [with materials]
CSUB210 REVIT [w/o materials]

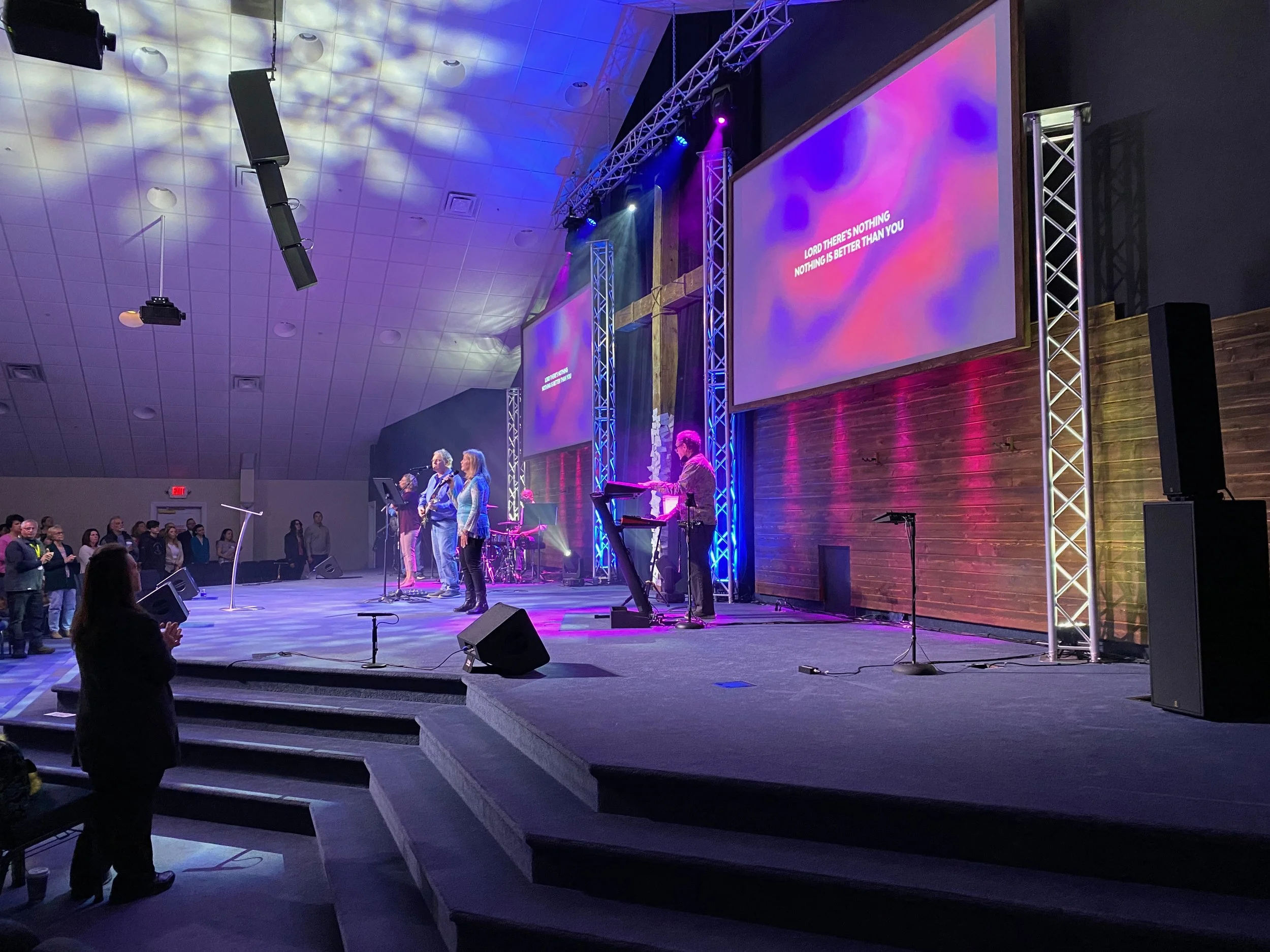

SUB310 tetracoil
compact, fast responding, deep bass, and “super” loud (137Db)
A triple 10” subwoofer with tetracoil technology
Produces THE SOUND AND SPL OF A single 18”, BUT only 11.8” wide or tall
(3) 10” drivers are stacked to create a line source for extra throw
SPECIFICATIONS
Description: Passive line source subwoofer, ultra slim with tetracoil technology drivers
Bandwidth: 32 Hz - 160 Hz (-6 dB preset dependent)
Max SPL: 137 dB SPL @ 1m with preset
Power: 2100 watts (program)
Directivity: Omnidirectional
Elements : (3) 10" tetracoil technology low frequency drivers
Impedance: 3Ω
Connectors: (2) NL4
IP Rating: IP55 indoor/outdoor and salt water resistant
Rigging: (20) M8 points, (6) M6 points for Tower Rigging System
Weight: 54 lb / 24.5 kg
Construction: Finland birch plywood (phenolic resin), three coats of polyurea, matte salt and UV resistant coating, A4 (316) stainless steel hardware, 3D spacer mesh fabric
Accessories: Sub Pole Cup, Active Speaker Tubes, Tower Rigging System, M8 Hanging Kit, Subwoofer Outrigger Set, removable rubber feet [included]
Dimensions: 11.8” (300 mm) x 15.75” (400 mm) x 37.4” (950 mm)
Colors: Stocking black and white, custom colors and fabrics available
Subwoofers
In-Use Photo Gallery
Tower Systems
In-Use Photo Gallery
DOWNLOADS
SUB310 SPECIFICATION & DATA SHEET
SUB310 EASE PROFILE
SUB310 EASE FOCUS 3
TOWER SYSTEMS EASE FOCUS 3
SUB310 CLF FILE
SUB310 PDF DRAWING
SUB310 2D DWG DRAWING
SUB310 3D DWG (vertical with feet)
SUB310 3D DWG (horizontal with feet)
SUB310 3D DWG (w/o feet)
SUB310 REVIT [with materials]
SUB310 REVIT [w/o materials]

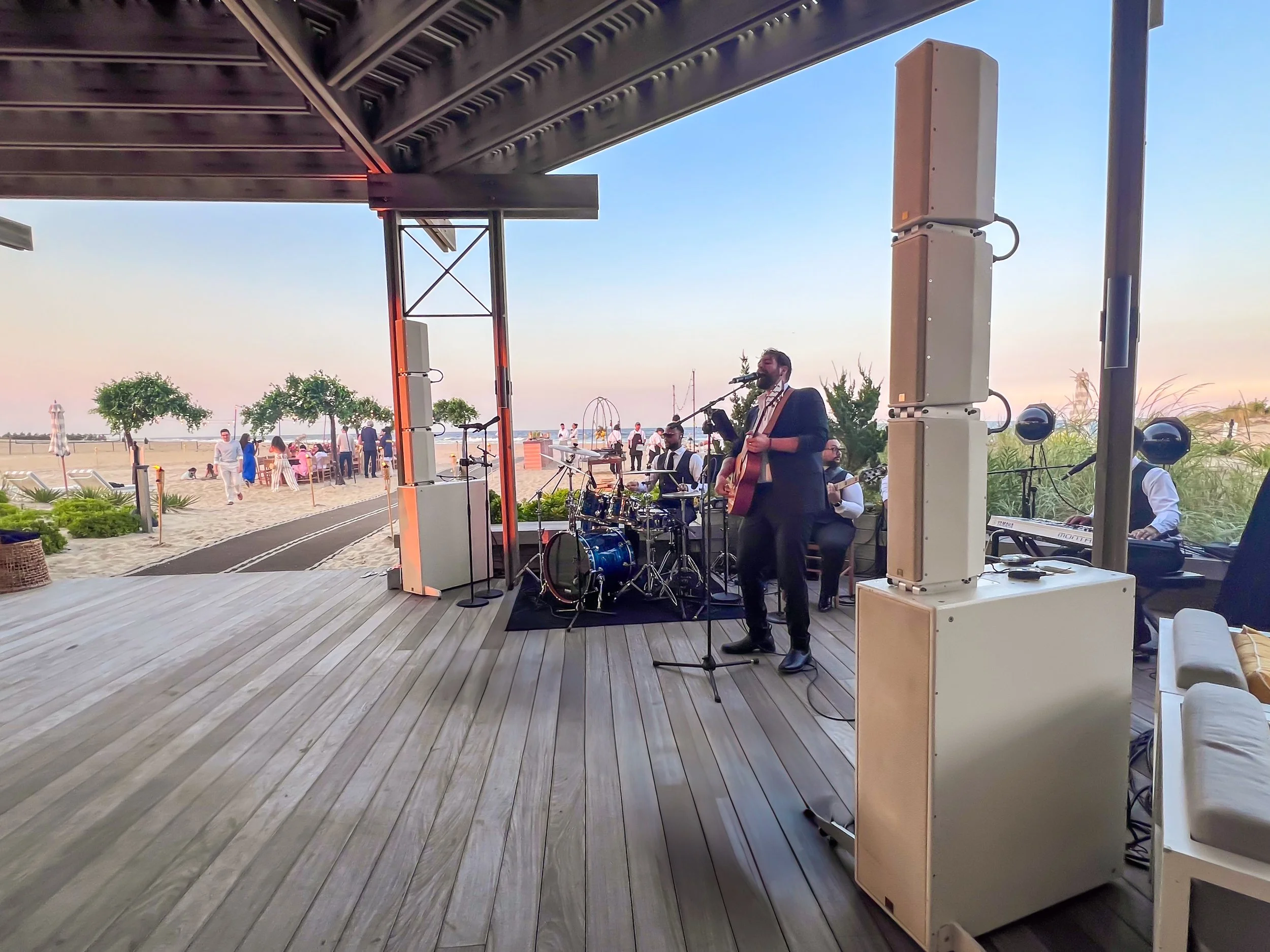

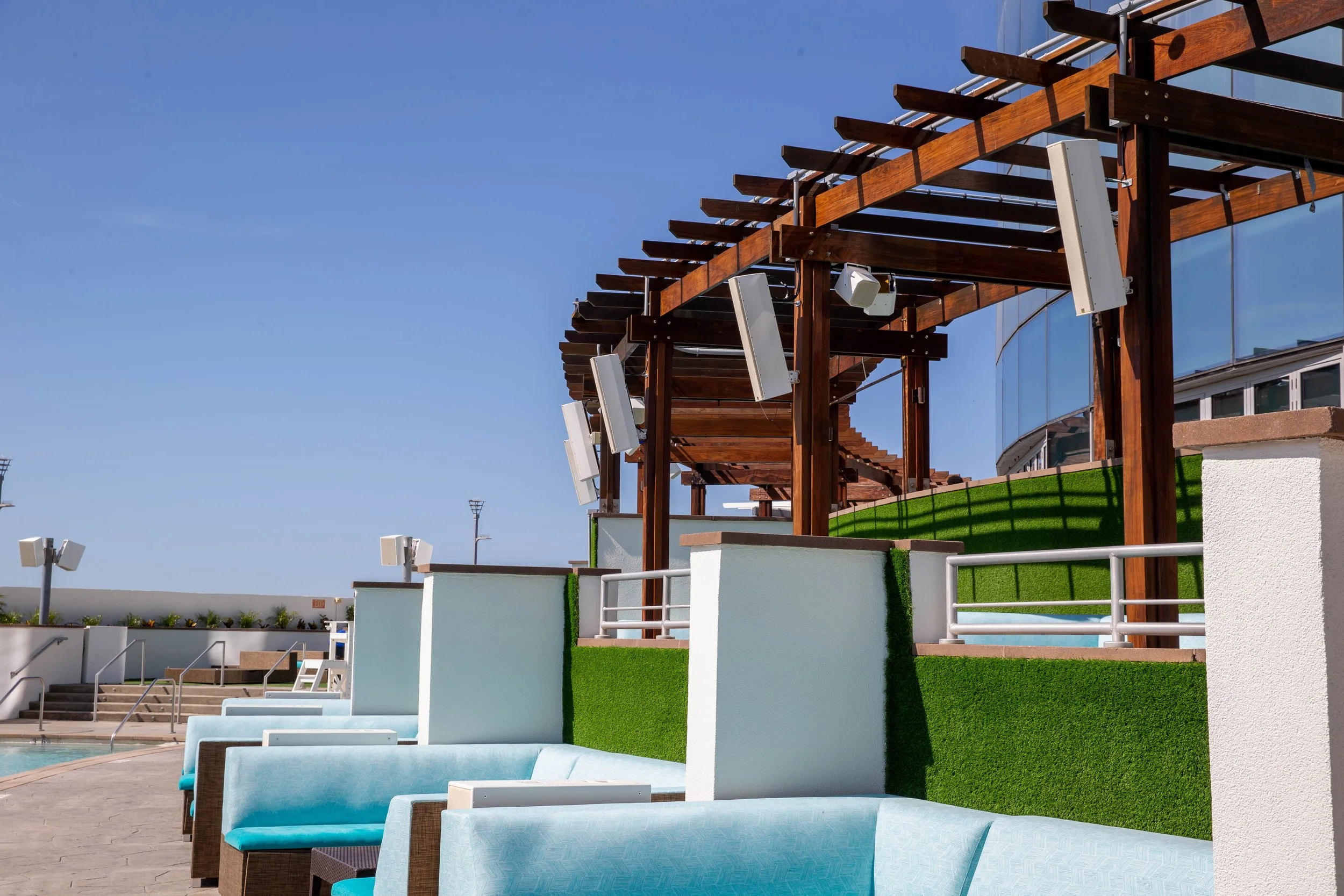

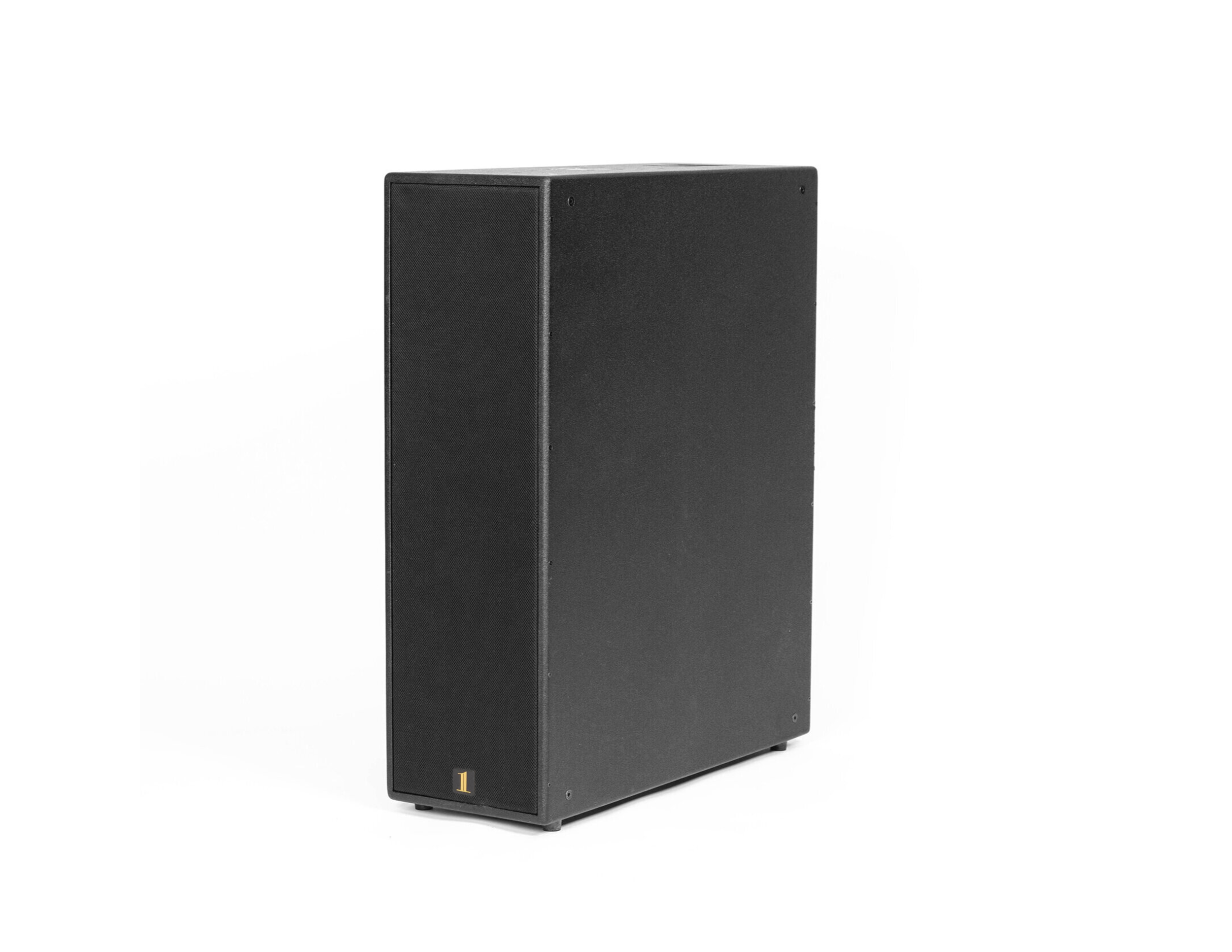

CSUB610 steerable
A STACKED TRIPLE 10” IN THE FRONT, AND IN THE REAR
THIS IS A Multidirectional LINE SOURCE Subwoofer that offers
fully cardioid, sub cardioid (end fire), and omnidirectional modes
It can be placed parallel or perpendicular to a wall and is only 11.8” wide or tall. When vertical this sub has rigging points to stack multiple Tower columns on top and has a pole cup accessory to place your favorite satellite
SPECIFICATIONS
Description: Passive line source subwoofer, ultra slim with (6) tetracoil technology drivers, multidirectional (DSP dependent)
Bandwidth: 32 Hz - 160 Hz (-6 dB preset dependent)
Max SPL: 140 dB SPL @ 1m with preset
Power: 2100+2100 watts (program)
Directivity: Cardioid, sub cardioid, or omnidirectional
Elements : (6) 10" tetracoil technology low frequency drivers
Impedance: 3Ω + 3Ω, 4 wire operation
Connectors: (2) NL4
IP Rating: IP55 indoor/outdoor and salt water resistant
Rigging: (16) M8 points, (12) M6 points for Tower Rigging System
Weight: 108 lb / 49 kg
Construction: Finland birch plywood (phenolic resin), three coats of polyurea, matte salt and UV resistant coating, A4 (316) stainless steel hardware, 3D spacer mesh fabric
Accessories: Sub Pole Cup, Active Speaker Tubes, Tower Rigging System, Subwoofer Outrigger Set, removable rubber feet [included]
Dimensions: 11.8” (300 mm) x 30.9” (785 mm) x 37.4” (950 mm)
Colors: Stocking black and white, custom colors and fabrics available
Subwoofers
In-Use Photo Gallery
Tower Systems
In-Use Photo Gallery
DOWNLOADS
CSUB610 SPECIFICATION & DATA SHEET
CSUB610 EASE PROFILE
CSUB610 EASE FOCUS 3
TOWER SYSTEMS EASE FOCUS 3
CSUB610 CLF OMNI, ENDFIRE, CARDIOID
CSUB610 PDF DRAWING
CSUB610 DWG DRAWING
CSUB610 3D DWG (vertical with feet)
CSUB610 3D DWG (horizontal with feet)
CSUB610 3D DWG (w/o feet)
CSUB610 REVIT [with materials]
CSUB610 REVIT [w/o materials]
CARDIOID MODE
SUB CARDIOID (END FIRE) MODE
OMNI MODE

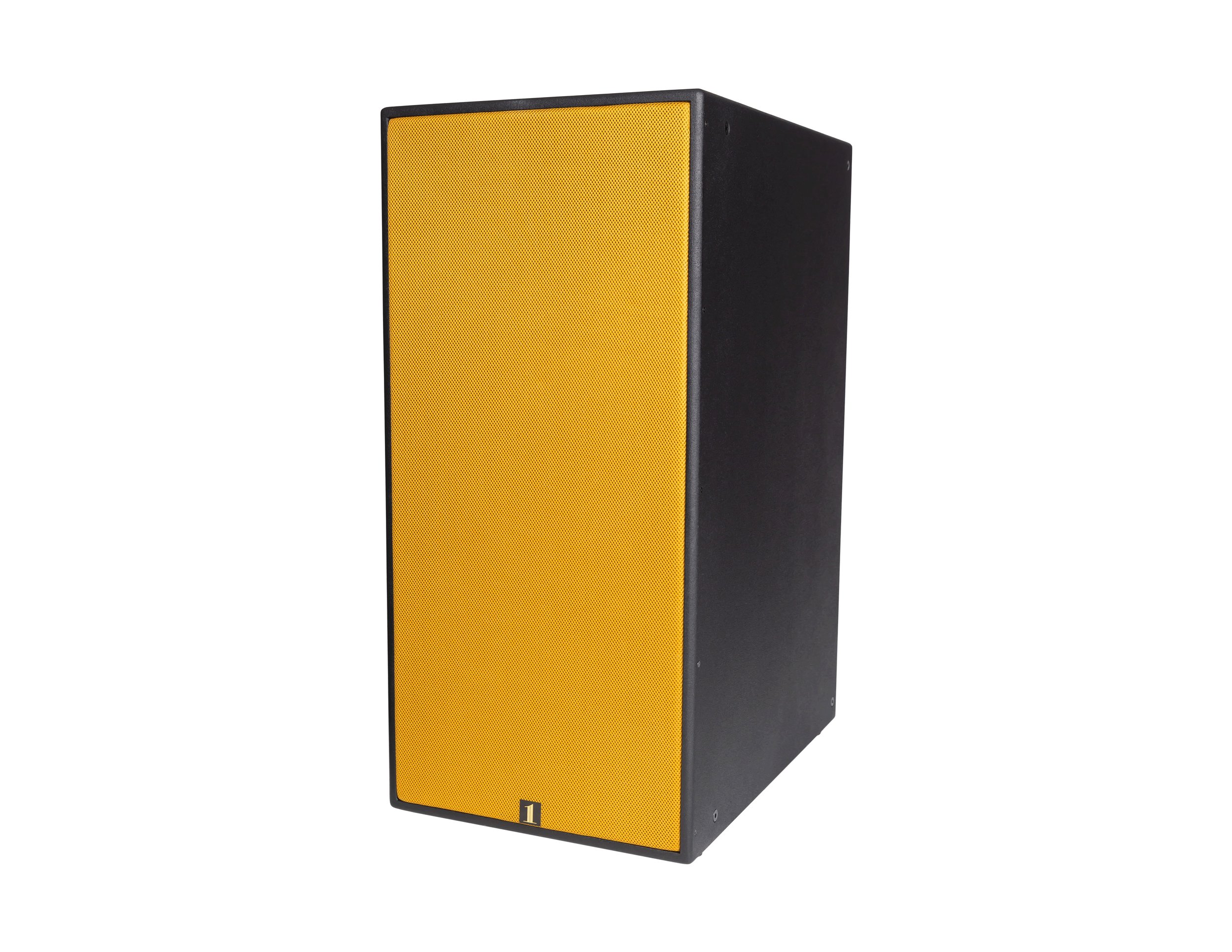

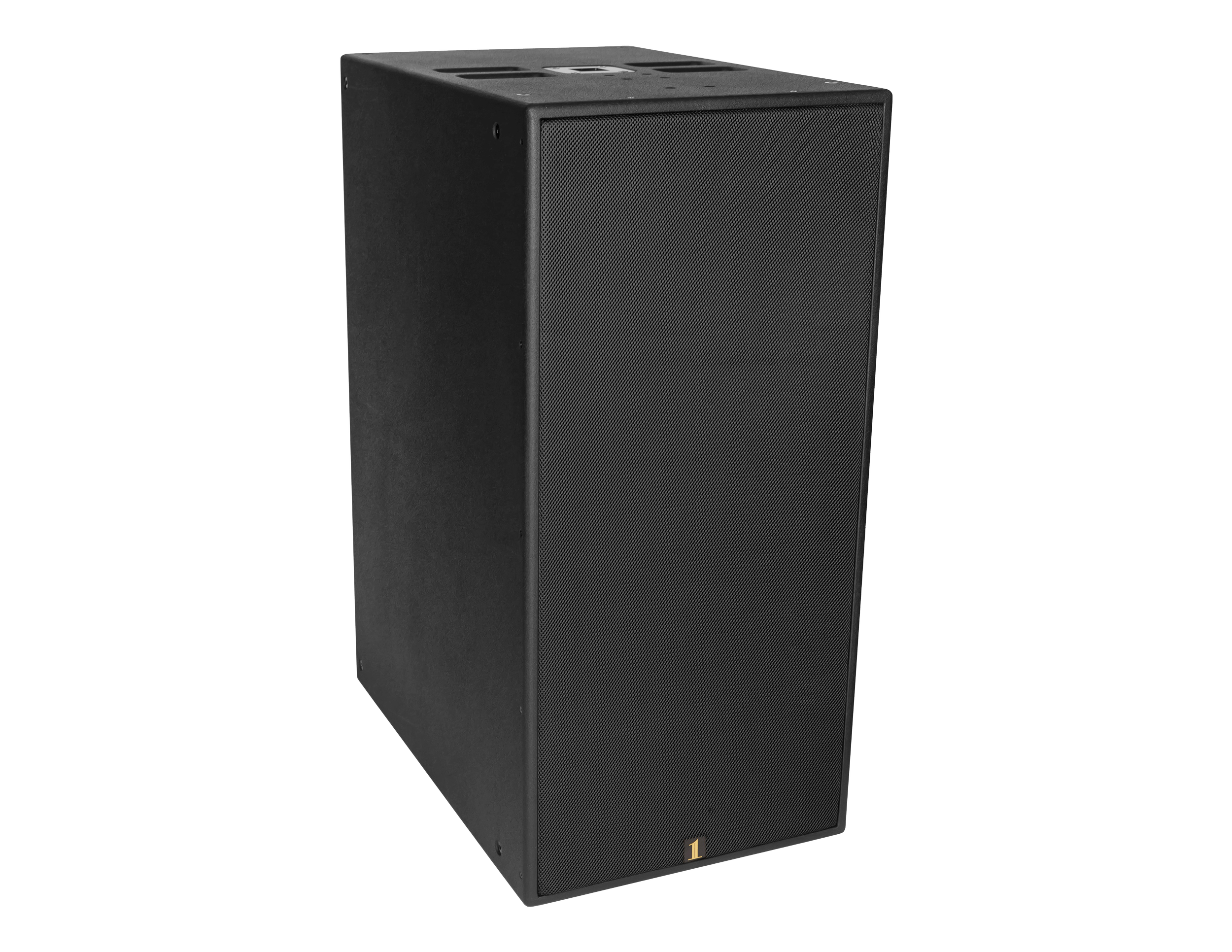

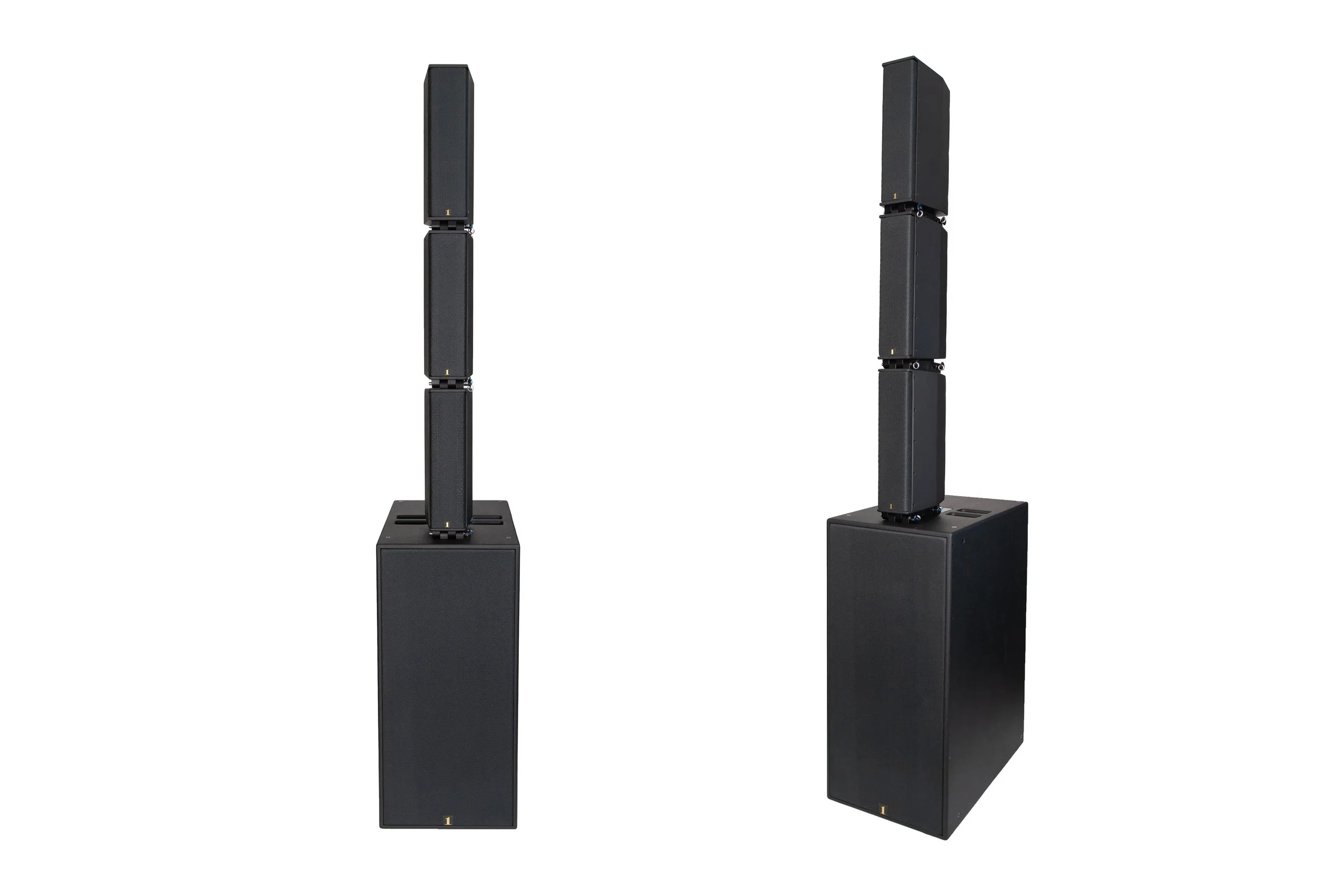

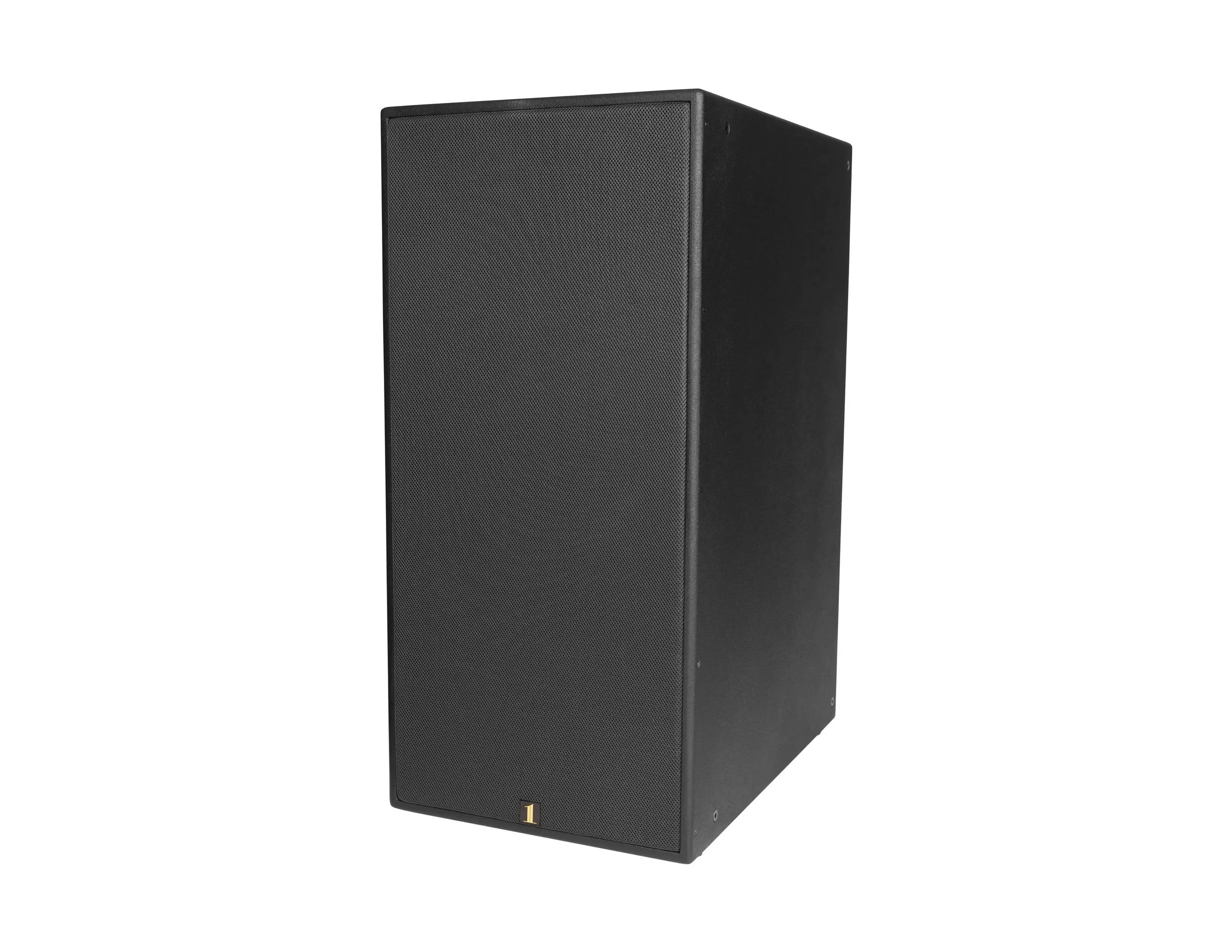

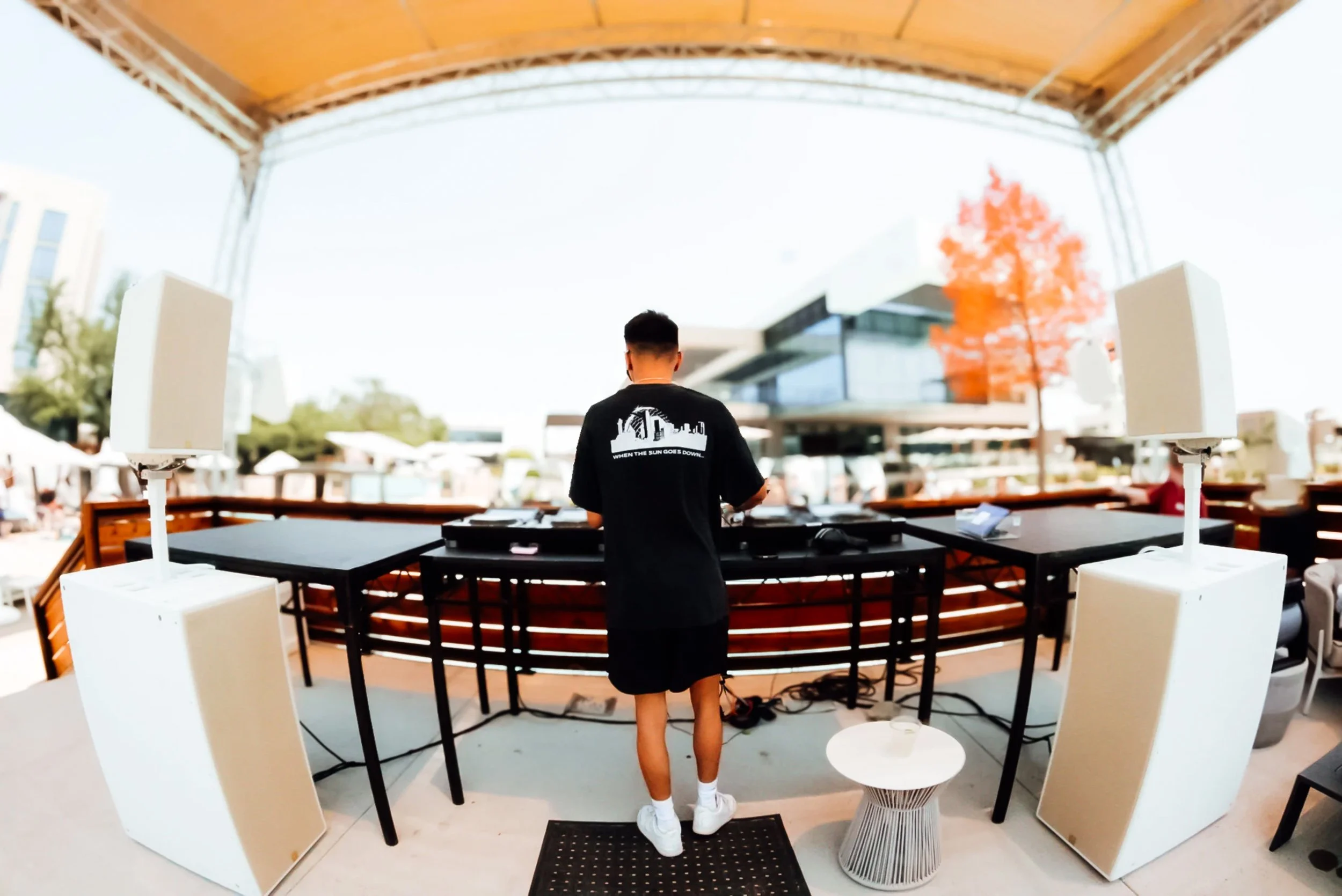

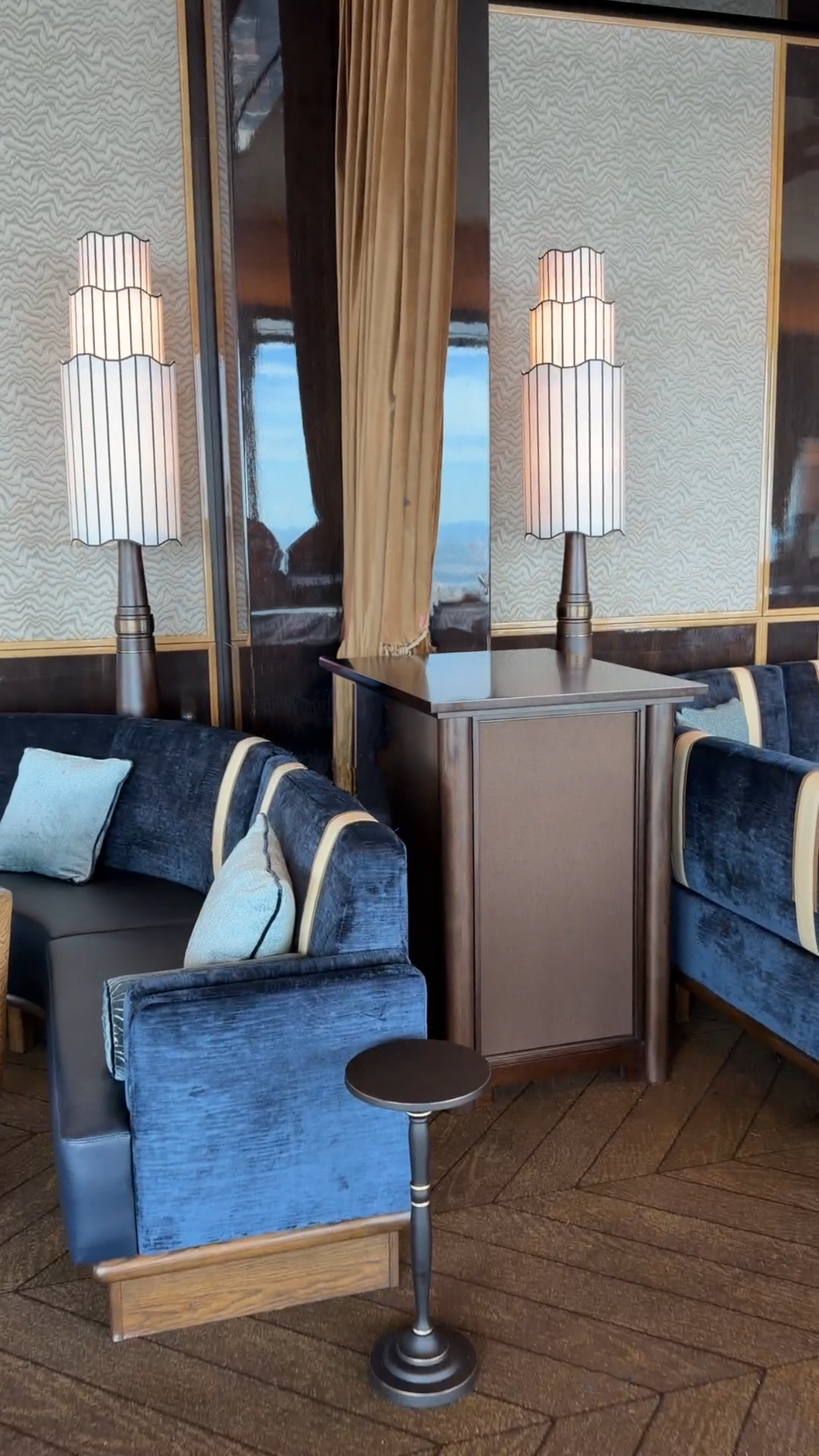

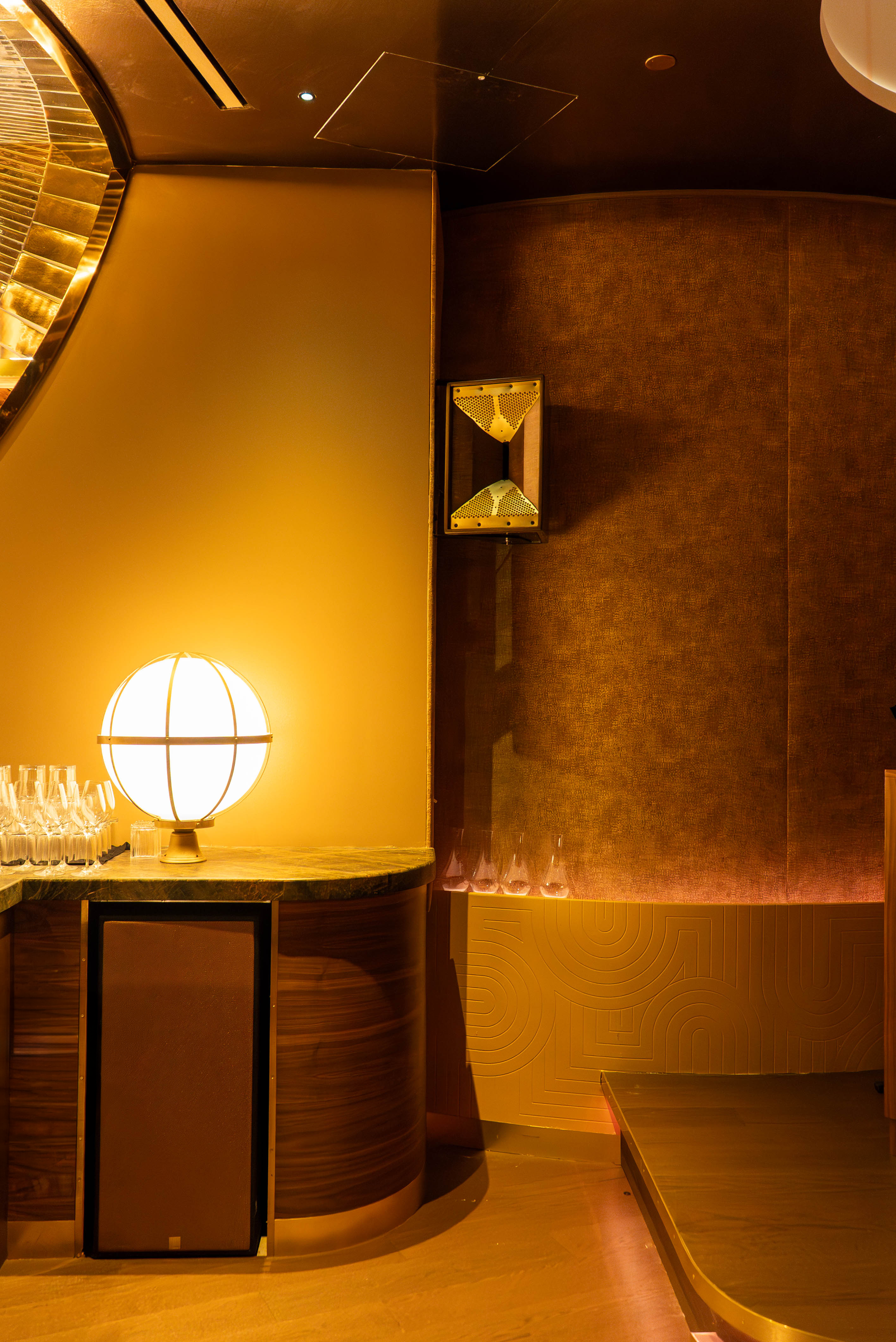

SUB215
fast-responding, deep bass subwoofer that delivers clear & punchy upper bass
(2) 15” low frequency drivers with the newest tetracoil technology
maximum SPL of 140 dB
The SUB215 cabinet is only 17.8” wide when deployed vertically or 17.8” tall when deployed horizontally. Use the SUB215 as a completed system utilizing the pole cup accessory which allows you to deploy the CT28 with a 1 SOUND Active Tube or mount any other satellite on top. In addition, this subwoofer has proprietary rigging points in order to attach a Tower Rigging System, fit for stacking the Tower LCC44 or LCC84 on top.
SPECIFICATIONS
Description: passive, fast-responding, powerful, deep, and loud
Bandwidth: 30 Hz - 120 Hz (-6 dB preset dependent)
Max SPL: 140 dB @ 1m with preset
Power: 3600 watts (program), 1800 watts (AES)
Directivity: omnidirectional
Elements : (2) 15” tetracoil technology low frequency drivers
Impedance: 4 Ω
Connectors: (2) NL4
IP Rating: IP55 indoor/outdoor and salt water resistant
Rigging: (20) M8 rigging points, (6) M6 points for Tower Rigging System
Weight: 133.8 lbs / 60.7 kg
Construction: Finland birch plywood (phenolic resin), three coats of polyurea, matte salt and UV resistant coating, A4 (316) stainless steel hardware, 3D spacer mesh fabric
Accessories: Sub Pole Cup, Active Speaker Tubes, Tower Rigging System, Removable Caster Wheel Set, removable rubber feet [included]
Dimensions: 37.4” (950 mm) x 17.7” (450 mm) x 26.7” (680 mm)
Colors: Stocking black and white, custom colors and fabrics available
Subwoofers
In-Use Photo Gallery
Contour Systems
In-Use Photo Gallery
SUB2112 bi-amped
The SUB2112 is a powerful 2-way bi-amped subwoofer, with a max SPL of 137 dB
2 additional octaves from traditional subwoofers
It produces a solid 25 Hz with an upper bass that is fast-responding, tight, and loud.
(1) 4000w 21” neodymium driver
(2) 1800w 12” neodymium drivers
SPECIFICATIONS
Description: passive, 2-way bi-amped subwoofer, fast-responding, powerful, and loud
Bandwidth: 25 Hz - 160 Hz (-6 dB preset dependent)
Max SPL: 137 dB @ 1m with preset
Power: 4000w + 3600w (program), 2000w + 1800w (AES)
Directivity: omnidirectional
Elements : (1) 21” low frequency drivers, (2) 12” low frequency drivers
Impedance: 4Ω + 4Ω
Connectors: (2) NL4
IP Rating: IP55 indoor/outdoor and salt water resistant
Rigging: (16) M8 points, (6) M6 points for Tower Rigging System
Weight: 198 lbs / 90 kg
Construction: Finland birch plywood (phenolic resin), three coats of polyurea, matte salt and UV resistant coating, A4 (316) stainless steel hardware, 3D spacer mesh fabric
Accessories: Sub Pole Cup, Active Speaker Tubes, Tower Rigging System, Removable Caster Wheel Set, removable rubber feet [included]
Dimensions: 43.3” (1100 mm) x 31.3” (795 mm) x 23.4” (594 mm)
Colors: Stocking black and white, custom colors and fabrics available
Subwoofers
In-Use Photo Gallery
Contour Systems
In-Use Photo Gallery
