FLOOR MONITORS
progressive Horn design 3-Way system High SPL
Monitor M35
Cardioid Monitor CM38
MONITOR M35 - NEW!
Description
The Monitor M35 is a smaller version of the CM38. This monitor is extremely compact standing only 6” tall and less than 20” wide, capable of producing a high SPL with a beautiful musical sonic quality. The monitor has a full range bandwidth making it ideal for live musical performers and speakers.
SPECIFICATIONS
Description: Passive, 3-way, slim monitor with a progressive horn design
Bandwidth: 65 Hz - 18 kHz (-6 dB preset dependent)
Max SPL: 122 dB
Power: 640 W (program), 320 W (AES)
Directivity: 60° vertical (+25°/-35° with respect to the baffle), 50° to 90° horizontal (progressive)
Elements: (2) 5” low frequency drivers, (1) 5” coaxial driver, (3) 5” passive radiators
Impedance: 16Ω
Connectors: (2) NL4
IP Rating: IP55 indoor/outdoor and salt water resistant
Rigging: (2) M6 points (only for bracket accessory)
Weight: 19.8 lbs / 9 kg
Construction: Finland birch plywood (phenolic resin), three coats of polyurea, matte salt and UV resistant coating, A4 316 stainless steel hardware, 3D spacer mesh fabric
Accessories: Recessed Mounting Bracket
Dimensions: 19.68” (500 mm) x 12” (306 mm) x 5.9” (150 mm)
Colors: Stocking black and white, custom colors and fabrics available
downloads
M35 SPECIFICATION & DATA SHEET
M35 EASE PROFILE
M35 PDF DRAWING
M35 2D DWG DRAWING
M35 3D DWG
M35 REVIT (Freestanding) [with materials]
M35 REVIT (Freestanding) [w/o materials]
(2) 5” LOW FREQUENCY DRIVERS
(1) 5" coaxial driver with a progressive horn element
(3) 5” Passive Radiators
ACCESSORIES: Recessed Mounting Bracket
CARDIOID MONITOR CM38
(2) 8” LOW FREQUENCY DRIVERS
(1) 8" coaxial driver with 3” & 2” voice Coils with a progressive horn element
ACCESSORIES: Recessed Mounting Bracket
Description
The CM38 is a high-performance, low-profile stage monitor with a passive three-way system that generates a cardioid directivity pattern. It is equipped with two 8" tetracoil woofers, plus a central 8" coaxial transducer with a 3" voice coil for the low-frequency element and a 2" voice coil for the high-frequency element. Its progressive horn design offers excellent coherence of attenuation over distance between the high end and the low end of the spectrum. This creates a diffusion pattern that goes from 80° for a listener standing near or above the monitor, down to 40° as it throws far across the stage. The CM38 has passive cardioid behavior, which means it musically cancels about 8 dB of mid-low frequencies on the sides and behind the speaker in its off-axis response. This is ideal to reduce polluted sound on stage and aim the energy to the most needed spots. It results in a cleaner sound environment past the monitor and also maintains its pronounced high frequency towards the sides of the monitor. Thanks to a non-resonant chamber, the low-, mid-, and high-frequency components work together in optimal conditions to deliver a tight, punchy sound and clear intelligibility to the listener while achieving outstanding SPL with respect to its size. The CM38’s robust build standing at only 8” off the stage features a recessed connection panel to maintain a clean look. The CM38 has an included hidden bracket that allows for flush ceiling or wall mounting presenting a sleek fit and finish in other applications.
SPECIFICATIONS
Description: Passive, high-powered, cardioid floor monitor
Bandwidth: 70 Hz - 18 kHz (-6 dB)
Max SPL: 130 dB @ 1m with preset
Power: 1400 W (LF) + 800 W (MF+HF) (program) 700 W (LF) + 400 W (MF+HF) (AES)
Directivity: 80° vertical (-30°/+50° with respect to the baffle), 80° to 40° horizontal (progressive)
Elements: (2) 8" low frequency drivers, (1) 8" coaxial driver with 3” plus 2” voice coils
Impedance: 8Ω + 8Ω
Connectors: (2) NL4
IP Rating: IP55 indoor/outdoor and salt water resistant
Rigging: (2) M6 points (only for bracket accessory), (4) M8 points
Weight: 40 lbs / 18.2 kg
Construction: Finland birch plywood (phenolic resin), three coats of polyurea, matte salt and UV resistant coating, A4 (316) stainless steel hardware, 3D spacer mesh fabric
Accessories: Recessed Mounting Bracket
Dimensions: 27.6" (700 mm) x 16.1" (408 mm) x 8" (204 mm)
Colors: Stocking black and white, custom colors and fabrics available
downloads
CM38 SPECIFICATION & DATA SHEET
CM38 EASE PROFILE
CM38 PDF DRAWING
CM38 2D DWG DRAWING
CM38 3D DWG
CM38 REVIT (Freestanding) [with materials]
CM38 REVIT (Freestanding) [w/o materials]
Lou Mannarino, 1 SOUND's Designer, introduces the CM38.

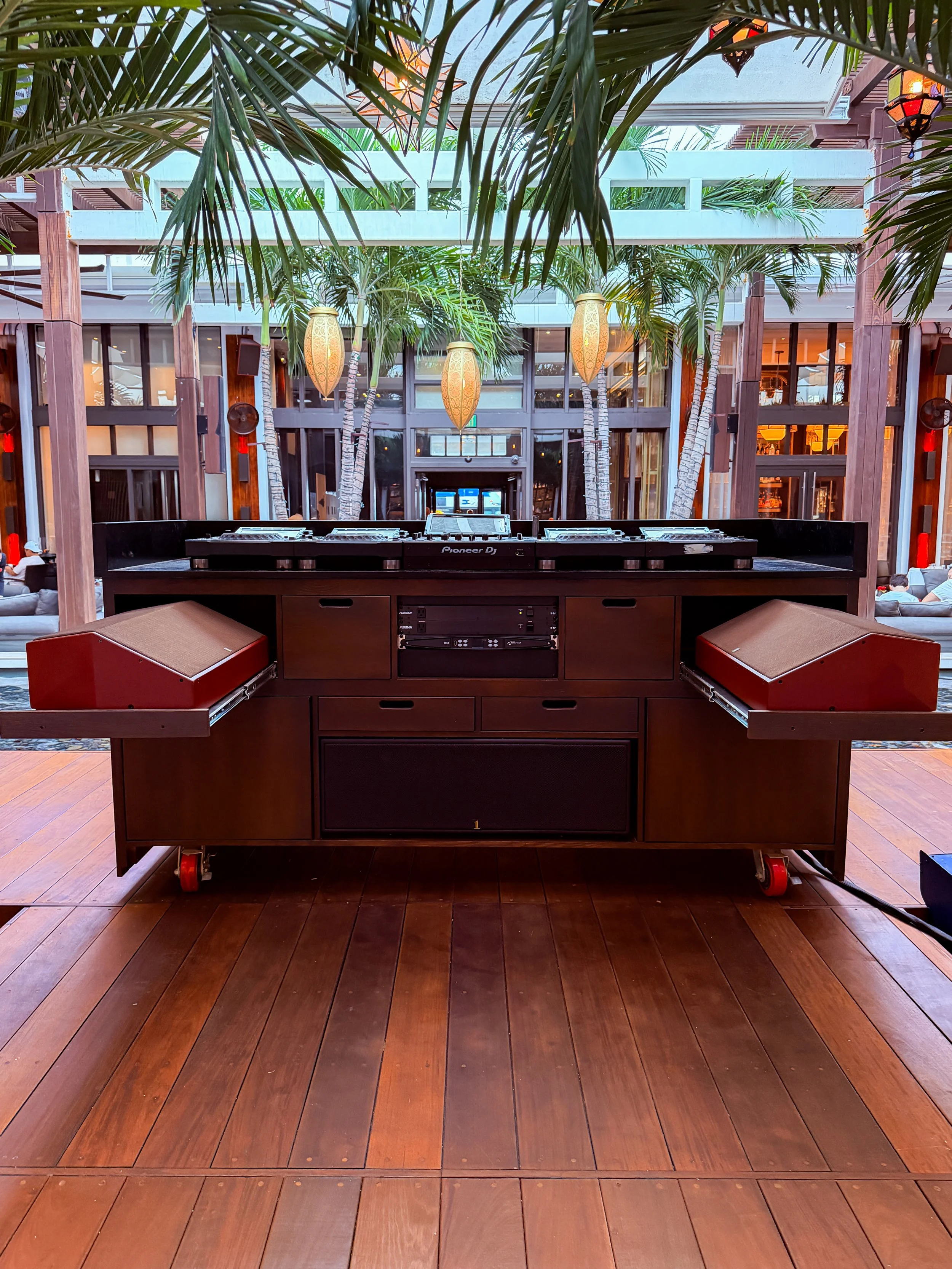

News Featuring the CM38
