THE PANORAMA: MONO + STEREO
A two channel point source loudspeaker system
featuring Mono+Stereo SPEAKER Technology©️
Mono surrounded by the width of stereo

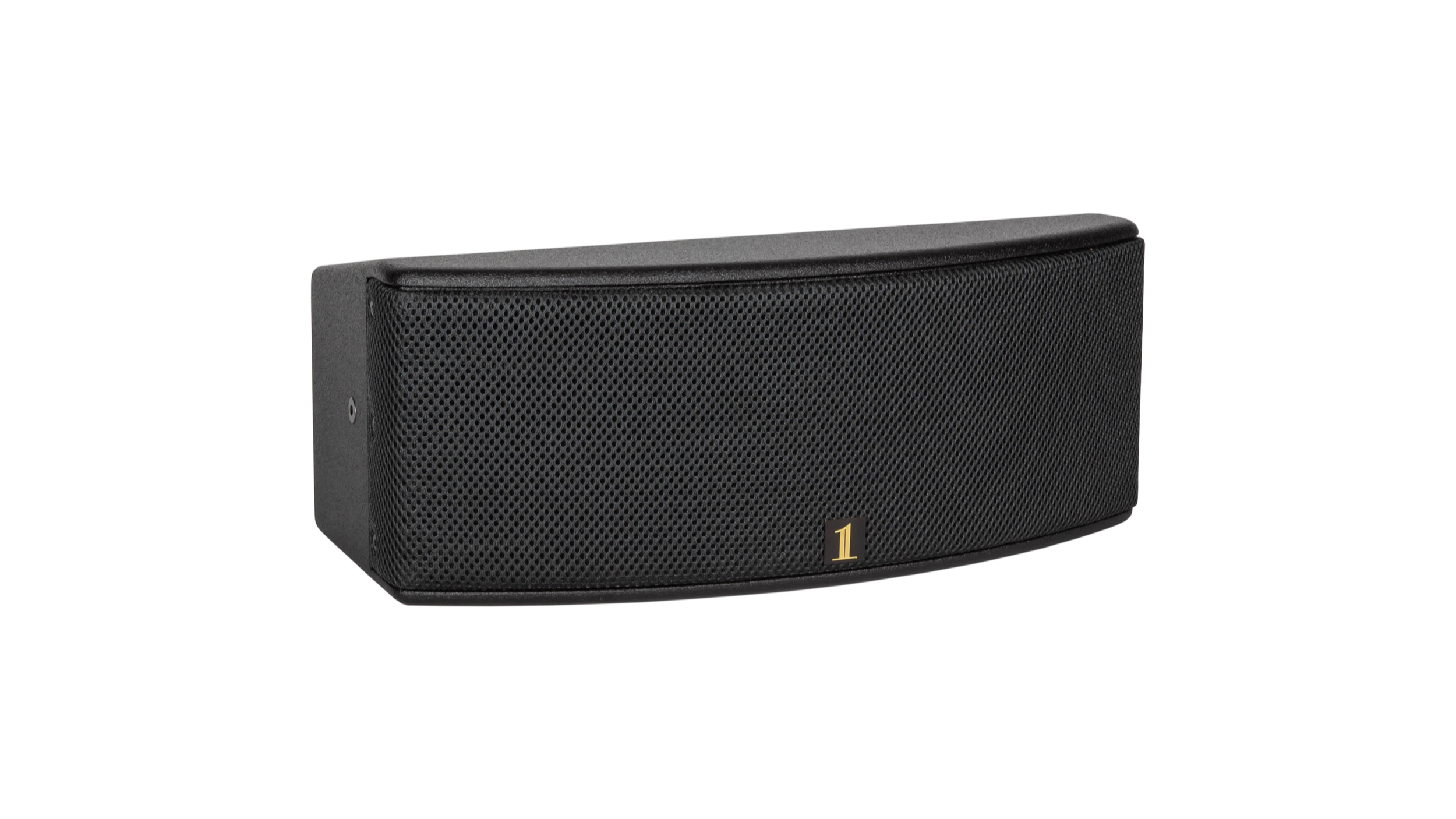

PANORAMA MS34
Mono+Stereo Technology starts with L/R and divides it into a mono (mid) plus sides. From there, the M+S is arranged in this compact loudspeaker system preserving the true mono while surrounding the listener with a spacious stereo image.
As a stand alone mono loudspeaker (switch and preset dependent) it can become a horizontal line source helping to preserve its off axis frequency response while adding 5 more dB of gain.
This loudspeaker is “1 of a kind” as a front fill, under balcony, monitor and an installed distributed system.
ADDITIONAL FEATURE: M+S/Mono switch transforms the MS34 into a mono line source (vertical or horizontal) with 5 dB more output than M+S mode.
SPECIFICATIONS
Description: M+S, 2 channel coaxial with an optional mono (line source) switch (DSP dependent)
Bandwidth: 95 Hz - 18 kHz (-6 dB)
Max SPL: 114 dB @ 1m with preset
Power: 200+200 watts (program), 100+100 watts (AES)
Directivity: 100° conical (-6 dB)
Elements: (1) 4” coaxial w/ 1.4” HF compression driver, (2) 4” full range, (2) 3.5” passive radiators
Impedance: 16Ω + 16Ω
Connectors: (2) NL4, a switch that changes M+S mode to mono (line source) mode
IP Rating: IP55 indoor/outdoor and salt water resistant
Rigging: (2) M6 points
Weight: 9.4 lbs / 4.3 kg
Construction: Finland birch plywood (phenolic resin), three coats of polyurea, matte salt and UV resistant coating, A4 (316) stainless steel hardware, 3D spacer mesh fabric
Accessories: C-Clamp (wall, truss, mic stand, ceiling mounting), L-Bracket, Tube Mount, Pole Mount Adaptor
Dimensions: 13.6” (346 mm) x 5.6” (144 mm) x 7.7” (197 mm)
Colors: Stocking black and white, custom colors and fabrics available

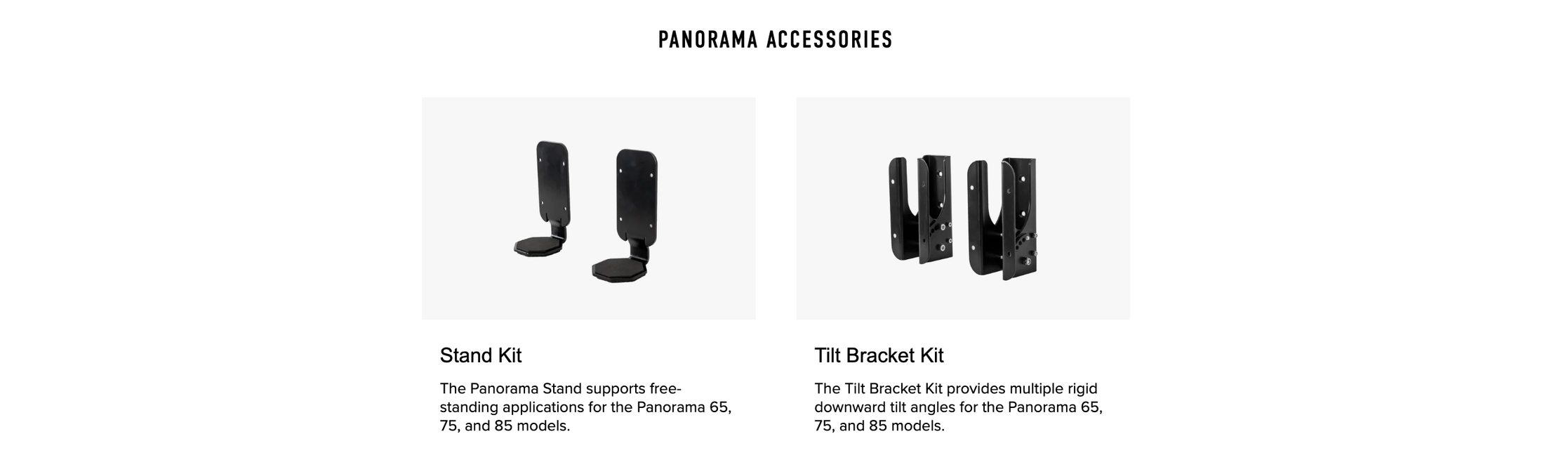

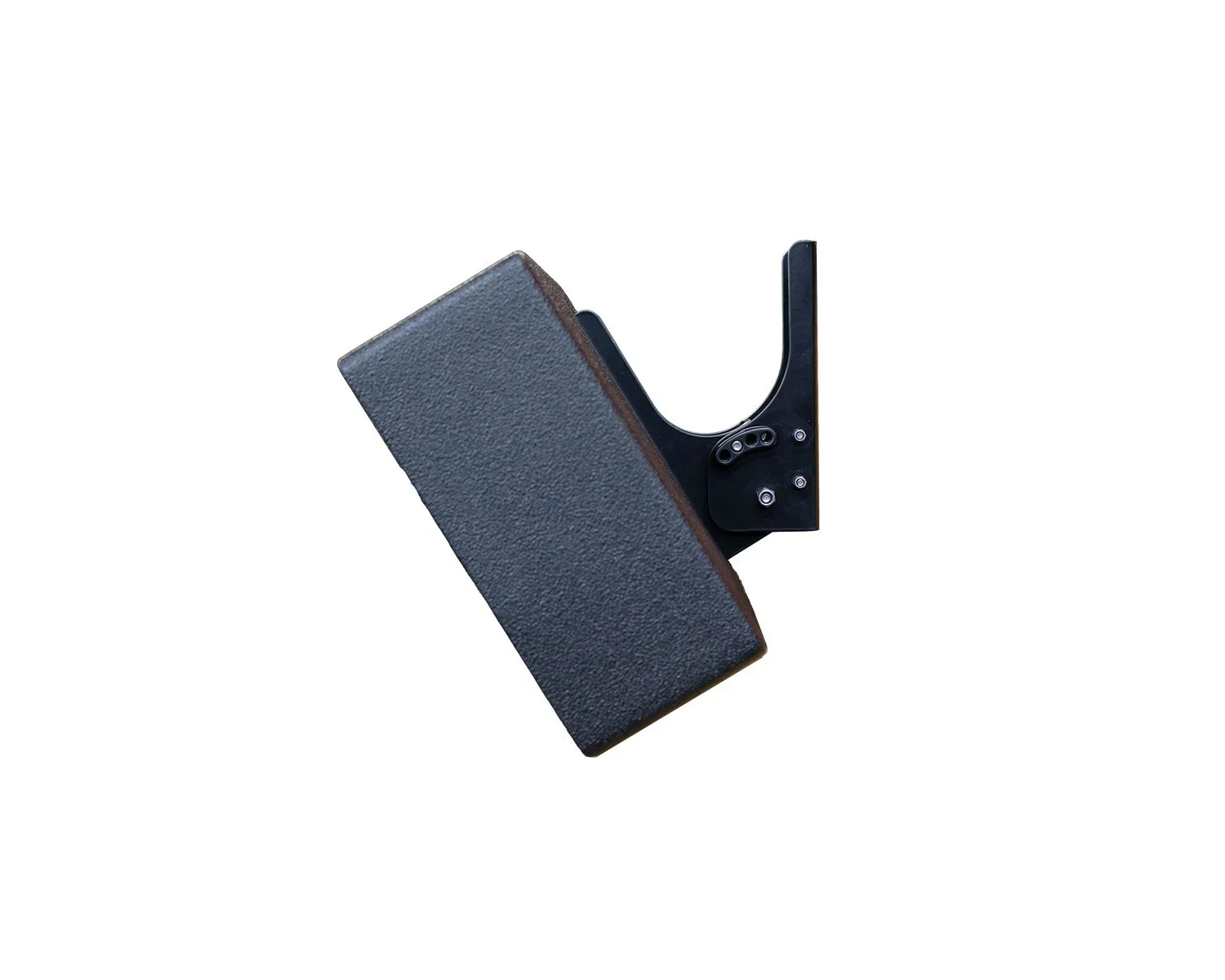

MS34 Accessories
Panorama MS34
In-Use Photo Gallery
downloads
MS34 SPECIFICATION & DATA SHEET
MS34 EASE PROFILE
MS34 EASE FOCUS 3 (MONO) PROFILE
MS34 CLF FILE (MONO)
MS34 PDF DRAWING
MS34 2D DWG DRAWING
MS34 3D DWG (freestanding)
MS34 REVIT FAMILY (free-standing) [with materials]
MS34 REVIT FAMILY (C-Clamp mounted) [with materials]
MS34 REVIT FAMILY (free-standing) [w/o materials]
MS34 REVIT FAMILY (C-Clamp mounted) [w/o materials]
Mono+Stereo Controller
The M+S Controller is an analog audio device that accepts a stereo (L/R) signal and outputs mono+stereo (MS). This unit is active and electronically balances the outputs enabling longer cable runs. The controller is capable of providing audio for two discrete L/R mixes.
The M+S controller is a necessary component for the MS34 to operate in M+S mode. It is not necessary to operate the MS34 in mono (line source) mode.
connectors are line level XLR male and female
front LED indicators are multicolor to indicate the amount of input level
19” rack mountable with an external power supply
Power Consumption:
input: 100-240V ~ 50-60Hz 2.0A
output: 24V - 1.67A
