The New Contour CT212!

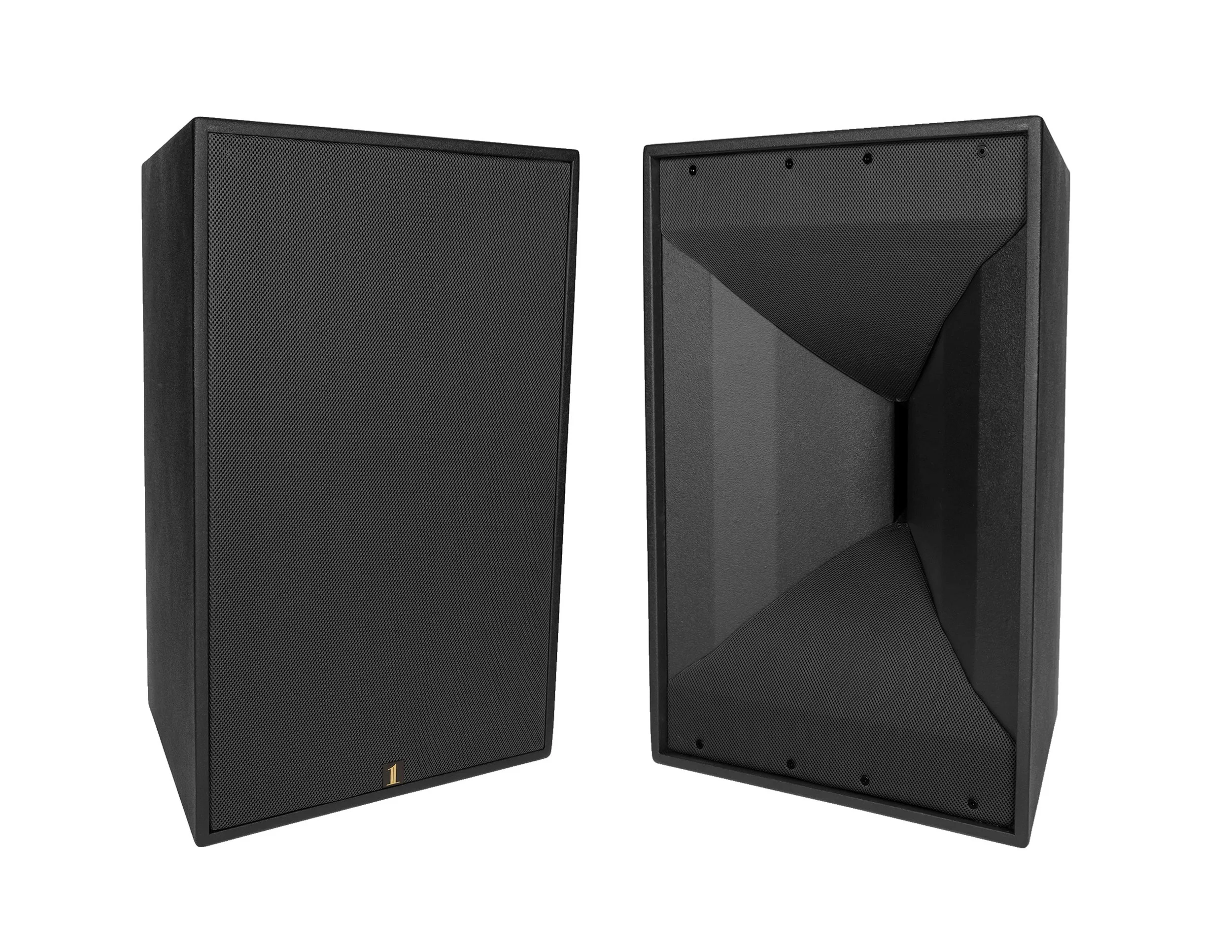

CT212 with the magnetic grille on and off
Here’s the first look at the Contour CT212, a powerful horn-loaded 3-way point source, which will be launching at InfoComm 2023!
The Contour CT212 is a horn-loaded 3-way passive loudspeaker capable of delivering a maximum SPL of 145 dB. This is a powerful speaker that sounds full and present while still sounding intimate at lower volumes. The Contour combines two 12" low-frequency drivers and a coaxial 4" + 2" mid-high compression driver in a horn-loaded point source enclosure. The CT212 delivers a controlled 100° x 50° dispersion maintaining constant directivity down to 200 Hz, with a bass response down to 55 Hz. It is a long throw point source that maintains its directionality in the far field. With various rigging options, this loudspeaker is useful for medium to large-scale installations and live production audio. Perfect for a band in a 700-seat theater or an installed dance club audio system. The CT212 is IP55 rated and saltwater resistant, with stainless steel 316 accessories available.
Be among the first to experience the new Contour CT212 and visit our demo room at InfoComm or make an appointment with our Director of Sales Michael@1-sound.com.
Demo Room: W221A
Booth:5669
SPECIFICATIONS
Description: passive, 3-way loudspeaker, horn-loaded point source
Bandwidth: 55 Hz - 20 kHz (-6 dB preset dependent)
Max SPL: 145 dB @ 1m with preset
Power: 3600 watts LF + 380 watts MHF (program), 1800 watts LF + 190 watts MHF (AES)
Directivity: 100° x 50°
Elements: (2) 12” low frequency drivers, (1) 4” mid-high coaxial with a 2” compression driver
Impedance: 4Ω LF + 16 Ω MHF
Connectors: (2) NL4
IP Rating: IP55 indoor/outdoor and salt water resistant
Rigging: (8) M5 points, (4) M6 points
Weight: 91.8 lbs / 41.6
Construction: Finland birch plywood (urea glue), matte salt and UV resistant polyurea coating, 316 stainless steel and aluminum hardware, 3D spacer mesh fabric
Accessories: CT212 Horizontal Mounting Bracket, CT212 Wall Bracket, CT212 Rigging System, Tube Mount, removable magnetic front grille included
Dimensions: 20.6” (525 mm) x 18.1” (460 mm) x 30.8” (783mm)
Colors: stocking black and white, custom colors and fabrics available
