THE CANNONS: COAXIALS
studio monitor sound with high SPL output
The Cannons are unique high-fidelity, full-range loudspeakers. Each model, C4, C5, C6, and C8, boasts extended low frequency remarkable for their size. These coaxial loudspeakers have a beautiful sound quality, where the mid-range is pronounced and projected. The Cannons have an elegant and substantial finish and design as well as a studio monitor sound at louder levels. Quickly, becoming the new commercial standard for the audio industry. The Cannons’ robust build, makes them IP55 indoor/outdoor rated and saltwater resistant, with custom colors and wood finishes available.
C4
C5
C6
C8
CANNON C4
This is not an average 4” coaxial. It has a studio monitor fidelity, extended low frequency (with the help of the 4” passive radiator), a high SPL for its size, and optional accessories.
Available Models: C4, C4i, C4m
SPECIFICATIONS
Description: Passive 4” coaxial with a 4” passive radiator
Bandwidth: 100 Hz - 18 kHz (-6 dB)
Max SPL: 111 dB SPL @ 1m with preset
Power: 200 watts (program), 100 watts (AES)
Directivity: 85° conical
Elements: (1) 4” coaxial with a 1” dome high frequency element, (1) 4” passive radiator
Impedance: 8Ω
Connectors (C4 / C4m): (1) marine grade cable gland with 6 feet of 16/2 gauge wire in black or white
Connectors (C4i): (1) screw terminal block with input +/- and loop +/-
IP Rating: IP55 indoor/outdoor and salt water resistant
Rigging: (4) M6 points
Weight: 5.1 lbs / 2.3 kg
Construction (C4 / C4i): Finland birch plywood (urea glue), polyurea, matte salt and UV resistant coating, A4 (316) stainless steel hardware, galvanized and powder-coated black or white input plate, 3D spacer mesh fabric
Construction (C4m): Finland birch plywood (urea glue), polyurea, matte salt and UV resistant coating, A4 (316) stainless steel hardware, grilles, and input plate, 3D spacer mesh fabric
Accessories: C-Clamp (wall, truss, mic stand, ceiling mounting), L-Bracket, Mounting Plate, Tube Mount, Active Speaker Stand & Tubes, Pole Mount Adaptor
Dimensions: 5.9” (150 mm) x 5.9” (150 mm) x 7” (180 mm)
Colors: Stocking black and white, custom colors and fabrics available
C4i Accessories
Cannon Series

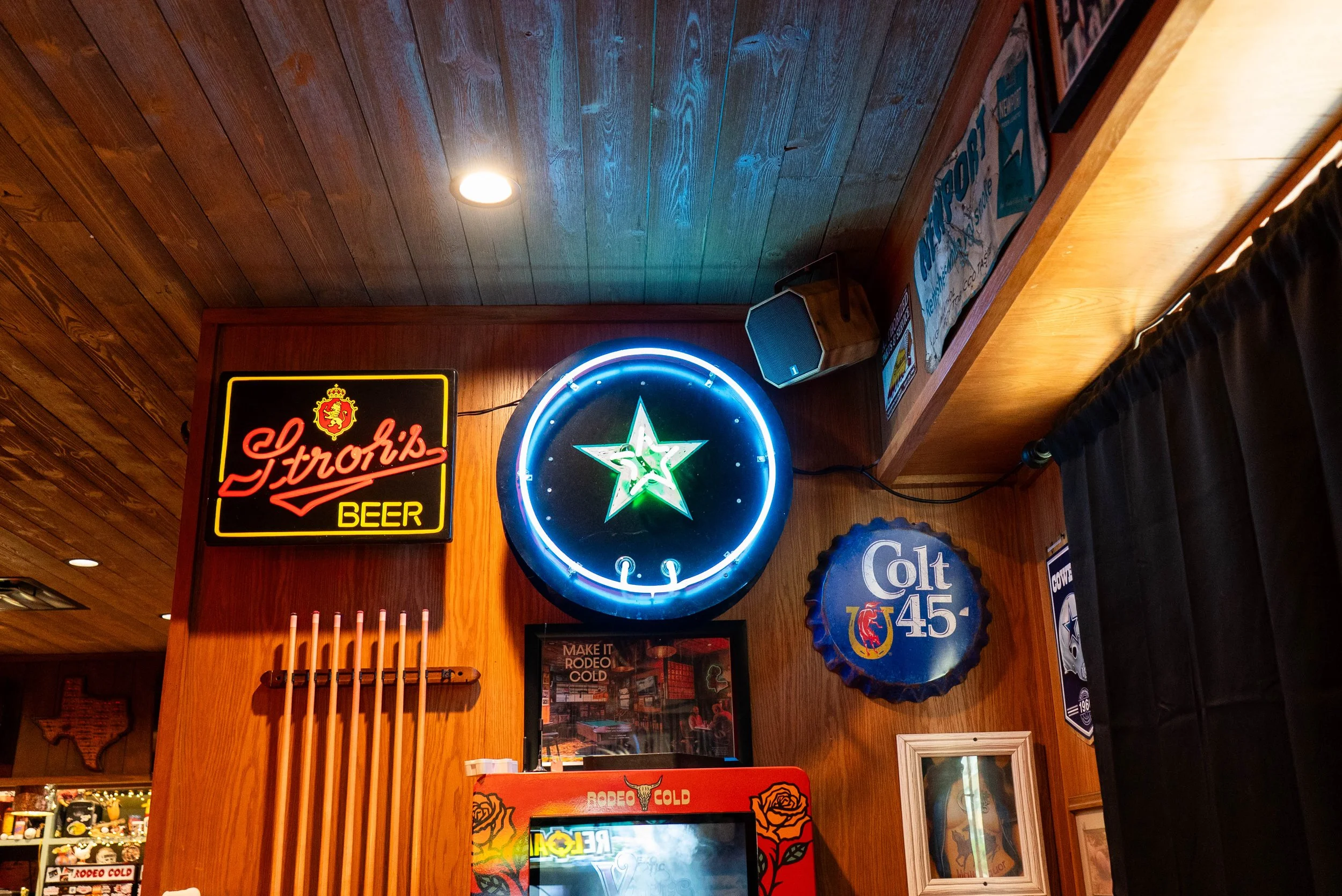

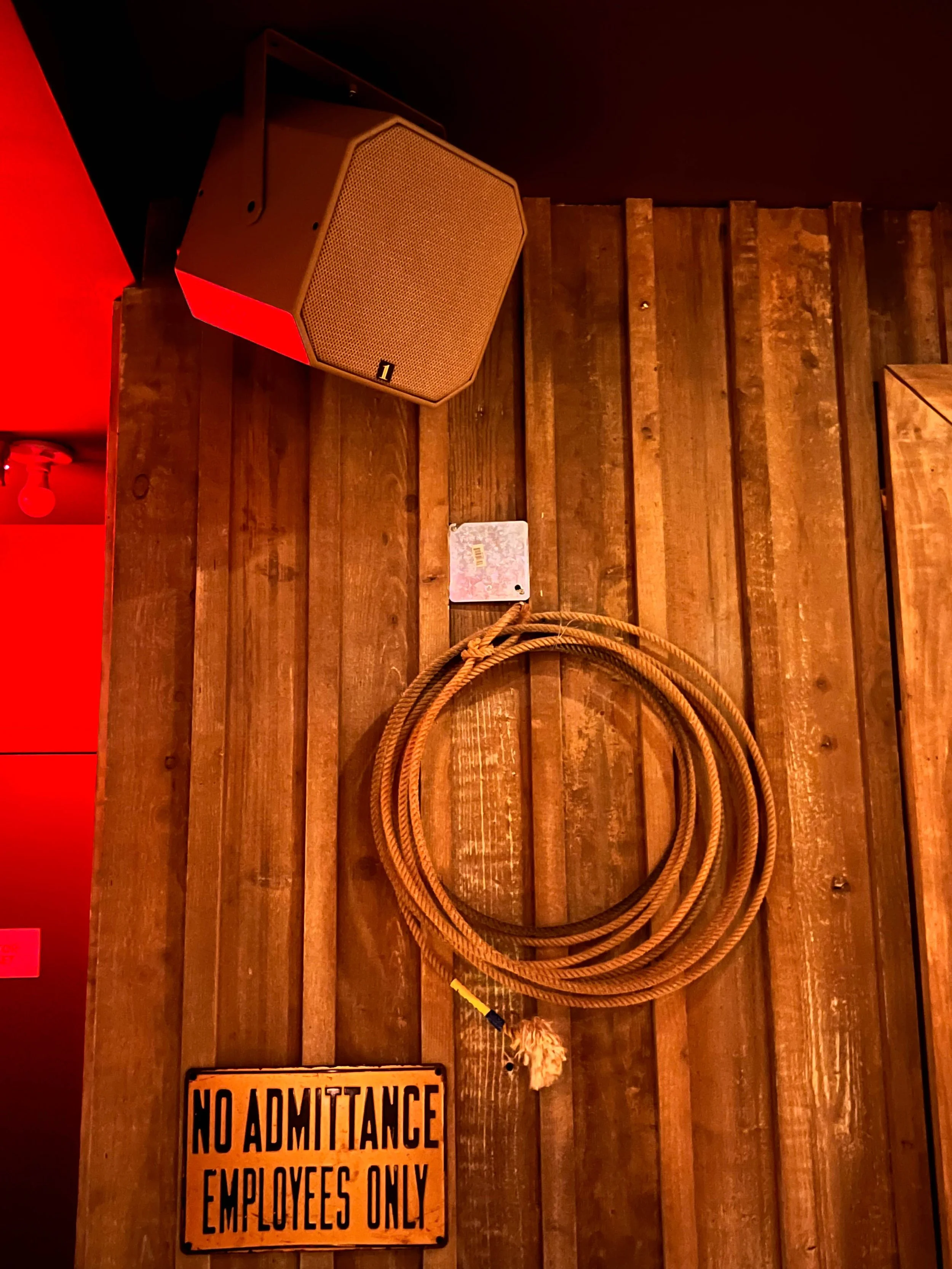

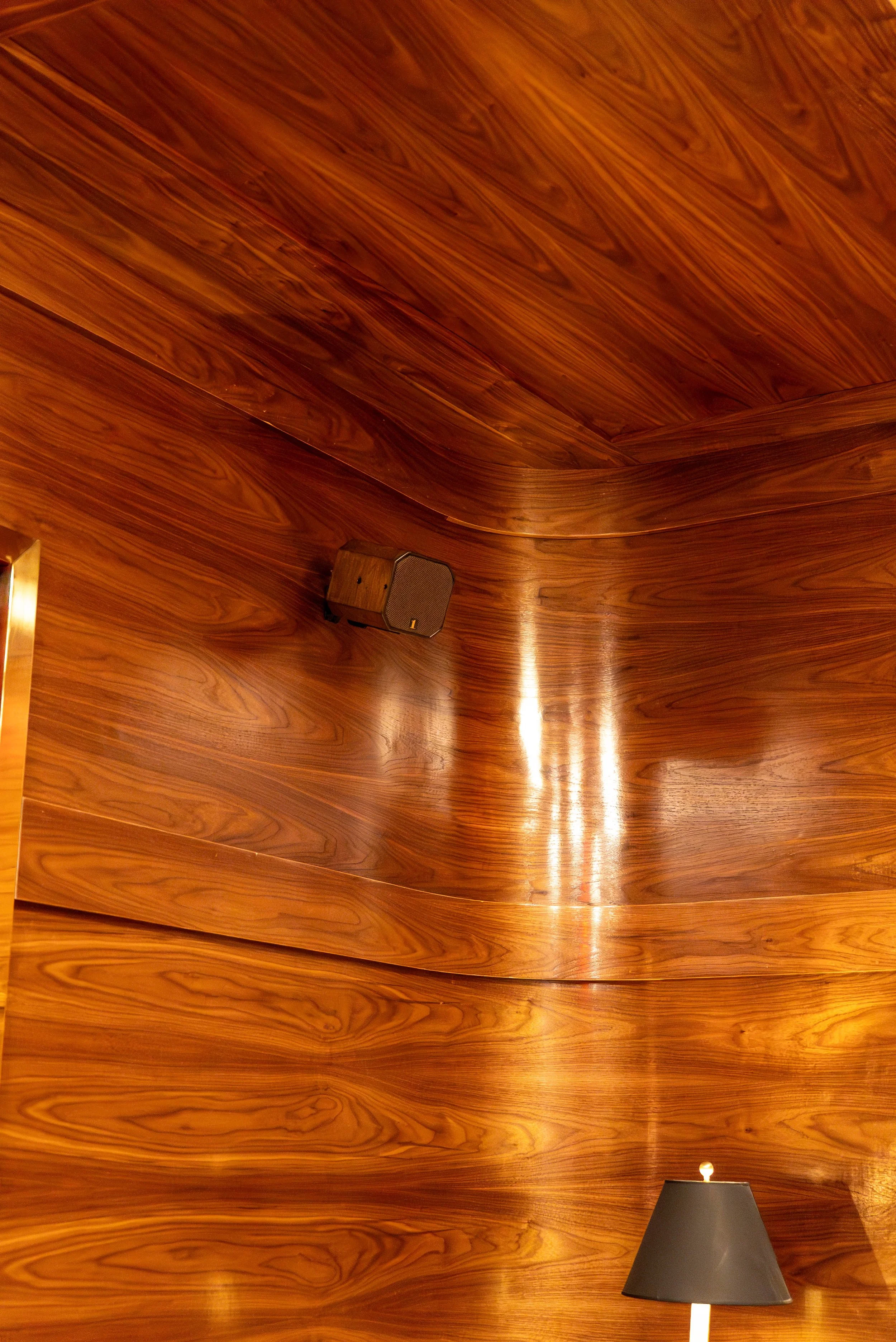

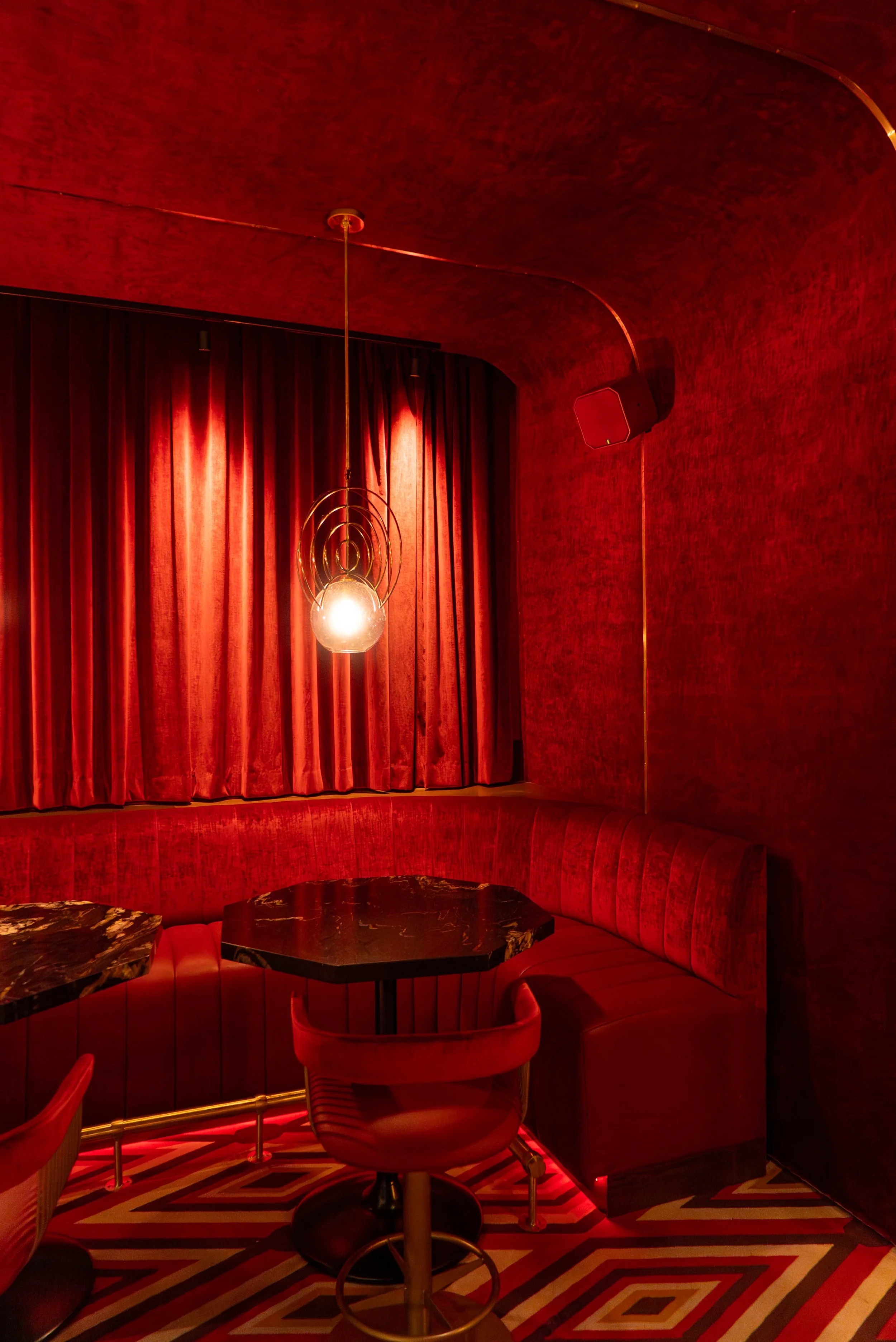

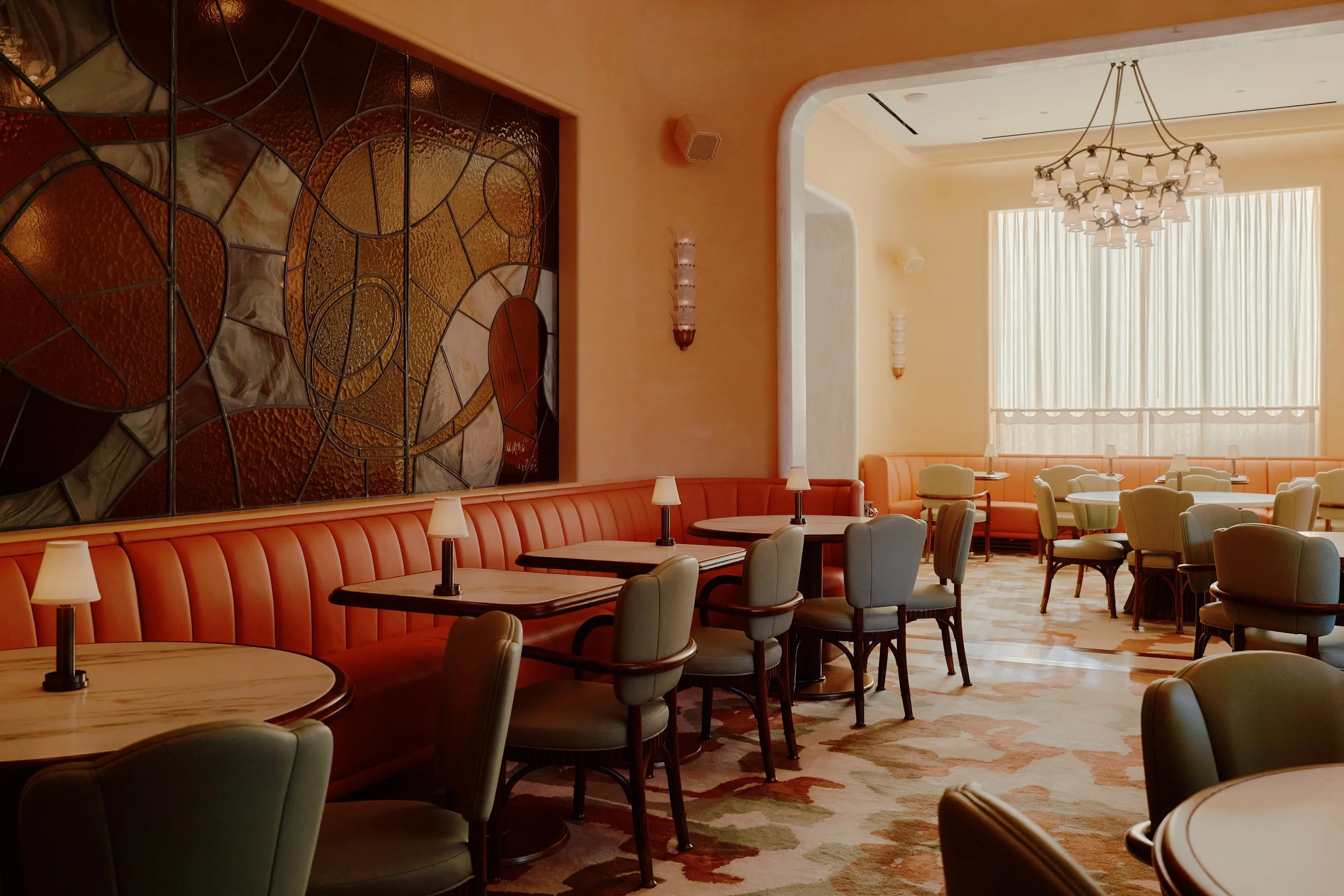

In-Use Photo Gallery
Downloads
C4i SPECIFICATION & DATA SHEET
C4 EASE PROFILE
CANNONS EASE FOCUS 3_V2
C4 CLF FILE
C4 DWG DRAWING
C4 PDF DRAWING
CANNON SERIES REVIT FAMILY (free-standing) [with materials]
CANNON SERIES REVIT FAMILY (c-clamp mounted) [with materials]
CANNON SERIES REVIT FAMILY (free-standing) [w/o materials]
CANNON SERIES REVIT FAMILY (c-clamp mounted) [w/o materials]
CANNON C5
This 5” Cannon coaxial utilizes a low frequency driver with a 1" silk dome high frequency driver. The Cannons’ silk dome driver is a purpose-built, ferrofluid-cooled design enabling high sound pressure levels, with improved sound quality, as well as consistency and durability over time. The enclosure also incorporates a rear-facing passive radiator for extended bass frequency response. These key features allow the C5 to provide the sound quality of a studio monitor.
Available Models: C5, C5i, C5m
SPECIFICATIONS
Description: Passive 5” coaxial with a 5” passive radiator
Bandwidth: 65 Hz - 18 kHz (-6 dB)
Max SPL: 113 dB SPL @ 1m with preset
Power: 240 watts (program), 120 watts (AES)
Directivity: 85° conical
Elements: (1) 5” coaxial with a 1” dome high frequency element, (1) 5” passive radiator
Impedance: 16Ω
Connectors (C5): (2) NL4, 2-circuit switch, (1) Neutrik NDL dummyPLUG
Connectors (C5i): (1) screw terminal block with input +/- and loop +/-
Connectors (C5m): (1) marine grade cable gland with 6 feet of 16/2 gauge wire in black or white
IP Rating: IP55 indoor/outdoor and salt water resistant
Rigging: (4) M6 points
Weight: 9.4 lbs / 4.3 kg
Construction (C5 / C5i): Finland birch plywood (urea glue), polyurea, matte salt and UV resistant coating, A4 (316) stainless steel hardware, galvanized and powder-coated black or white input plate, 3D spacer mesh fabric
Construction (C5m): Finland birch plywood (urea glue), polyurea, matte salt and UV resistant coating, A4 (316) stainless steel hardware, grilles, and input plate, 3D spacer mesh fabric
Accessories: C-Clamp (wall, truss, mic stand, ceiling mounting), L-Bracket, Mounting Plate, Tube Mount, Active Speaker Stand & Tubes, Pole Mount Adaptor
Dimensions: 7.5” (190 mm) x 7.5” (190 mm) x 8.2” (208 mm)
Colors: Stocking black and white, custom colors and fabrics available
ADDITIONAL FEATURE (C5): The C5 has a 2-circuit switch allowing for a choice of two mixes with a 4-wire cable. Eight Cannons can comfortably operate on a single cable.
C5 Accessories
Cannon Series
In-Use Photo Gallery
DOWNLOADS
C5 SPECIFICATION & DATA SHEET
C5i SPECIFICATION & DATA SHEET
C5 EASE PROFILE
CANNONS EASE FOCUS 3_V2
C5 CLF FILE
C5 DWG DRAWING
C5 PDF DRAWING
CANNON SERIES REVIT FAMILY (free-standing) [with materials]
CANNON SERIES REVIT FAMILY (c-clamp mounted) [with materials]
CANNON SERIES REVIT FAMILY (free-standing) [w/o materials]
CANNON SERIES REVIT FAMILY (c-clamp mounted) [w/o materials]
Cannon Series Overview
CANNON C6
This 6.5” Cannon coaxial utilizes a low frequency driver with a 1" silk dome high frequency driver. The Cannons’ silk dome driver is a purpose-built, ferrofluid-cooled design enabling high sound pressure levels, with improved sound quality, as well as consistency and durability over time. The enclosure also incorporates a 5” rear-facing passive radiator for extended bass frequency response down to 60 Hz. These key features allow the C6 to provide high-fidelity sound quality in a durable and compact box.
Available Models: C6, C6i, C6m
SPECiFICATIONS
Description: Passive 6.5” coaxial with a 5” passive radiator
Bandwidth: 60 Hz - 18 kHz (-6 dB)
Max SPL: 114 dB SPL @ 1m with preset
Power: 240 watts (program), 120 watts (AES)
Directivity: 85° conical
Elements: (1) 6.5” coaxial with a 1” dome high frequency element, (1) 5” passive radiator
Impedance: 16Ω
Connectors (C6): (2) NL4, 2-circuit switch, (1) Neutrik NDL dummyPLUG
Connectors (C6i): (1) screw terminal block with input +/- and loop +/-
Connectors (C6m): (1) marine grade cable gland with 6 feet of 16/2 gauge wire in black or white
IP Rating: IP55 indoor/outdoor and salt water resistant
Rigging: (4) M6 points
Weight: 10.6 lbs / 4.8 kg
Construction (C6 / C6i): Finland birch plywood (urea glue), polyurea, matte salt and UV resistant coating, A4 (316) stainless steel hardware, galvanized and powder-coated black or white input plate, 3D spacer mesh fabric
Construction (C6m): Finland birch plywood (urea glue), polyurea, matte salt and UV resistant coating, A4 (316) stainless steel hardware, grilles, and input plate, 3D spacer mesh fabric
Accessories: C-Clamp (wall, truss, mic stand, ceiling mounting), L-Bracket, Mounting Plate, Tube Mount, Active Speaker Stand & Tubes, Pole Mount Adaptor
Dimensions: 8.5” (216 mm) x 8.5” (216 mm) x 8.2” (208 mm)
Colors: Stocking black and white, custom colors and fabrics available
ADDITIONAL FEATURE (C6): The C6 has a 2-circuit switch allowing for a choice of two mixes with a 4-wire cable. Eight Cannons can comfortably operate on a single cable.
C6 Accessories
Cannon Series
In-Use Photo Gallery
DOWNLOADS
C6 SPECIFICATION & DATA SHEET
C6i SPECIFICATION & DATA SHEET
C6 EASE PROFILE
CANNONS EASE FOCUS 3_V2
C6 CLF FILE
C6 DWG DRAWING
C6 PDF DRAWING
CANNON SERIES REVIT FAMILY (free-standing) [with materials]
CANNON SERIES REVIT FAMILY (c-clamp mounted) [with materials]
CANNON SERIES REVIT FAMILY (free-standing) [w/o materials]
CANNON SERIES REVIT FAMILY (c-clamp mounted) [w/o materials]
CANNON C8
The C8 is a full-range, high-fidelity coaxial loudspeaker. This model utilizes an 8-inch driver with a proprietary high frequency element and has a 7-inch rear-facing passive radiator for extended low frequency. These key build features are why the C8 sounds hi-fi and has a bandwidth of 55 Hz - 18 kHz and a maximum SPL of 120 dB.
Available Models: C8, C8i, C8m
SPECIFICATIONS
Description: Passive 8” coaxial with a 7” passive radiator
Bandwidth: 55 Hz - 18 kHz (-6 dB)
Max SPL: 120 dB SPL @ 1m with preset
Power: 400 watts (program), 200 watts (AES)
Directivity: 90° horizontal, 60° vertical
Elements: (1) 8” coaxial with a proprietary high frequency element, (1) 7” passive radiator
Impedance: 8Ω
Connectors (C8): (2) NL4, 2-circuit switch, (1) Neutrik NDL dummyPLUG
Connectors (C8i): (1) screw terminal block with input +/- and loop +/-
Connectors (C8m): (1) marine grade cable gland with 6 feet of 16/2 gauge wire in black or white
IP Rating: IP55 indoor/outdoor and saltwater resistant
Rigging: (4) M6 points
Weight: 18.4 lbs / 8.3 kg
Construction (C8 / C8i): Finland birch plywood (urea glue), polyurea, matte salt and UV resistant coating, A4 (316) stainless steel hardware, galvanized and powder-coated black or white input plate, 3D spacer mesh fabric
Construction (C8m): Finland birch plywood (urea glue), polyurea, matte salt and UV resistant coating, A4 (316) stainless steel hardware, grilles, and input plate, 3D spacer mesh fabric
Accessories: C-Clamp (wall, truss, mic stand, ceiling mounting), L-Bracket, Mounting Plate, Tube Mount, Active Speaker Stand & Tubes, Pole Mount Adaptor
Dimensions: 10.2” (260 mm) x 10.2” (260 mm) x 10.2” (260 mm)
Colors: Stocking black and white, custom colors and fabrics available
ADDITIONAL FEATURE (C8): The C8 has a 2-circuit switch allowing for a choice of two mixes with a 4-wire cable.
